| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HC9908 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 3 days (in stock) |
| Payment Terms: | T/T |
| Supply Ability: | 30 set per month |
| Name: | Socket Outlet Torque Tester | Warranty: | 1 Year |
|---|---|---|---|
| Standard: | IEC60884, VDE0620, IEC60598, IEC60065Fig11, IEC 60335-1 And So On | Test Sample: | Fixed Socket-outlet, Plug-in Equipment |
| Weight: | 2.5N*1, 1N*1 | Arm Of Force: | 0-200mm |
| The Distance From The Contact Surface And The Axis Of The Surface: | 8mm | Application: | Plug Socket Tester |
| High Light: | Figure 11 Plug Socket Tester,IEC 60065 Plug Socket Tester,0.25Nm Socket Outlet Torque Tester |
||
IEC60065 figure 11 - Plug Socket Tester - Socket Outlet Torque Tester 0.25 Nm
Product information:
The torque tester conforms to the standard of IEC 60335-1 Clause 22.3, IEC60065 figure 11. It is used for checking whether the mechanical stress which occurs when the Direct Plug-in Equipment with plug pin normally insert into the socket is in the required range.
A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.
The balancing arm of the test apparatus pivots about a horizontal axis through the centre lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket-outlet.
With the device not in engagement, the balancing arm is in equilibrium, the engagement face of the socket-outlet being in the vertical position.
After the device has been engaged, the torque to be applied to the socket-outlet to maintain its engagement face in the vertical plane is determined by the position of a weight on the balancing arm. The torque shall not exceed 0.25 Nm.
Technical parameters:
| weight | 2.5N*1, 1N*1 |
| Plug | all-purpose plug(suit for GB and BS plug)*1, UL plug*1, European plug*1(can be customized ) |
| Conforms to standard | IEC60884,VDE0620,IEC60598,IEC60065Fig11 |
| Arm of force | 0-200mm |
| The distance from the contact surface and the Axis of the surface | 8mm |

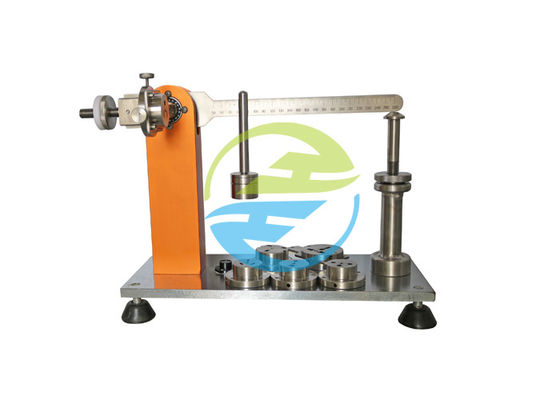

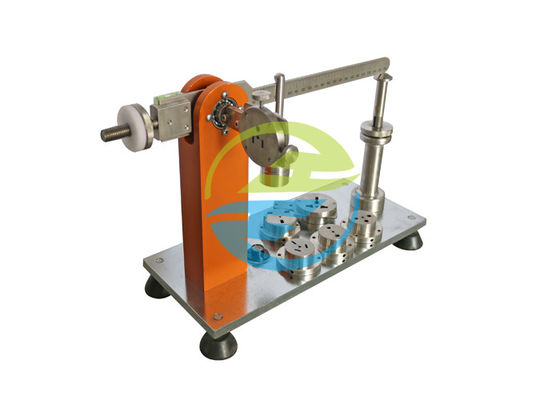

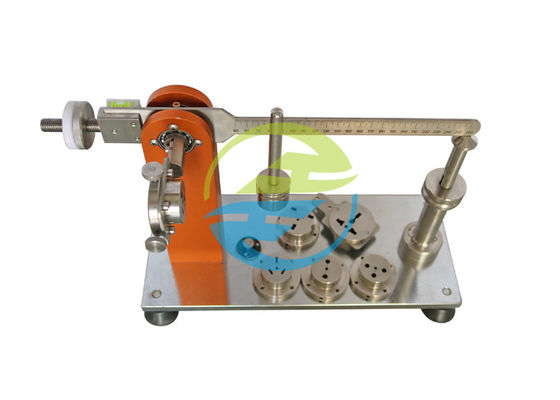

Picture for reference:
