IEC 60695-11-5 Flammability Testing Equipment Needle Flame Test

IEC 60695-11-5 Flammability Testing Equipment Needle Flame Test

IEC 60695-11-5 Flammability Testing Equipment Needle Flame Test
IEC 60695-11-5 Flammability Testing Equipment Needle Flame Test
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third party calibration certificate(cost additional)
Model Number: NF-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description

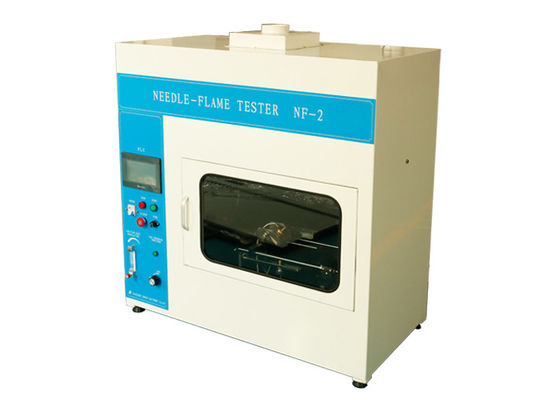

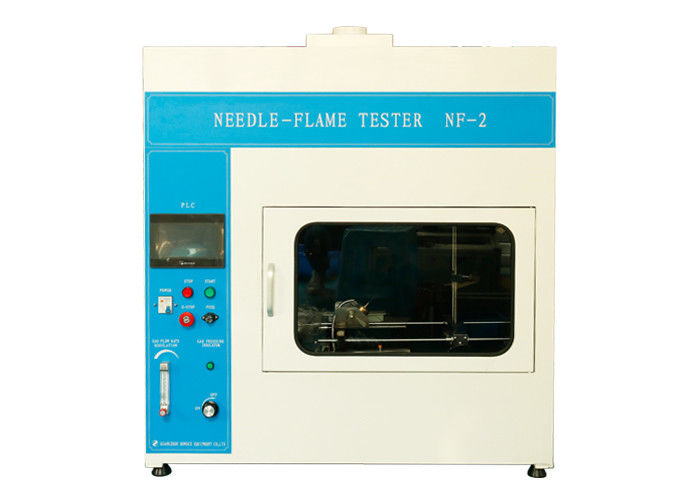

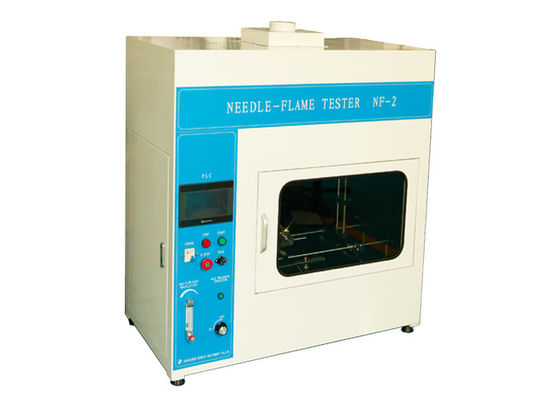

Product Name: Needle Flame Test Chamber Gas Supply: Propane Or Butane Gas Having A Purity Not Less Than 95 %
Burner: Inner Boreφ0.5mm ± 0.1mm , OD ≤φ0.9mm , L ≥ 35mm Height Of The Flame: 12±1mm Adjustable
Layer: Tissue Covered Wooden Board Flame Application Times: 5 S, 10 S, 15 S, 20 S, 30 S, 60 S, 120 S
Combustion Angle: Tilt 45° Copper: Φ4±0.01mm
High Light:

IEC 60695-11-5 Flammability Testing Equipment


120s Flammability Testing Equipment


12mm needle flame test chamber

IEC 60695-11-5 Flammability Testing Equipment Needle Flame Test



IEC 60695-11-5 Fire hazard testing - Part 11-5: Test flames - Needle-flame test method - Apparatus, confirmatory test arrangement and guidance



This part of IEC 60695 specifies a needle-flame test to simulate the effect of a small flame which may result from fault conditions, in order to assess the fire hazard by a simulation technique. The results of this test may be used as elements of a fire hazard assessment which takes into account all of the factors which are pertinent to an assessment of the fire hazard of a particular end use.


Summary of the test method:
The test specimen is arranged in a vertical position over tissue paper. A propane gas flame is applied to the edge as well as to the flat surface. The burning time, flammability and severity (exposure time) are determined for this flame application. The test is usually performed on parts or selected areas of these parts.


Test sample:

It is applicable to electrotechnical equipment, its sub-assemblies and components and to solid electrical insulating materials or other combustible materials.



ParametersModel NF-1 NF-2(Touch screen)
Working voltage 220V/50Hz 220V/50Hz
Control operation mode Electrical control, button operation PLC control, 7 inch color touch screen operation, with infrared remote control
Burner Inner boreφ0.5mm ± 0.1mm , outter diameter ≤φ0.9mm ,long ≥ 35mm, stainless steel
Gas supply Butane or propane gas having a purity of at least 95% ( can use the bottled lighter gas)
Height of the flame

12±1mm adjustable (with flame height gauge)

Flame warming requirement

From 100°±5°C to 700°±3°C,time for standard values within 23.5S±1S

Combustion angle Tilt 45°( testing ) or vertical ( when adjust the height of the flame)
Tray A layer of silk paper (12~30g/m³) is covered on the 10mm thick pine board, with a distance of 200±5mm below the test sample
Timer/sustained combustion 0-9999X0.1S
Temperature measuring distance The distance between the top center of the burner and the test sample:8±1mm
Temperature calibration Temperature measuring copper head:Φ4±0.01mm,weight:0.58±0.01g

Temperature thermocouple The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100°

Temperature measuring distance:6±0.5mm
Air volume control The flame height can be adjusted by adjusting the flow meter
Test procedure Automatic control, independent exhaust
Lighting Equip with lighting in the test chamber, with control
Test chamber and dimensions

>0.5 cube, black yogon background, with exhaust fan, size:1100*550*1200mm, weight:130kg

IEC 60695-11-5 Flammability Testing Equipment Needle Flame Test 0
