IEC62368 Jointed Test Probe / Finger Length 80mm Diameter 12mm

IEC62368 Jointed Test Probe / Finger Length 80mm Diameter 12mm

  • IEC62368 Jointed Test Probe / Finger Length 80mm Diameter 12mm
  • IEC62368 Jointed Test Probe / Finger Length 80mm Diameter 12mm
  • IEC62368 Jointed Test Probe / Finger Length 80mm Diameter 12mm
IEC62368 Jointed Test Probe / Finger Length 80mm Diameter 12mm
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HT-I02
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Aluminum box
Delivery Time: 3 days
Payment Terms: T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Usage: For Equipment Not Likely To Be Accessible To Children
Standard: IEC62368 Application: Audio/video, Information And Communication Technology Equipment
Baffle Diameter: Ф75±0.2 Finger Length: 80±0.2
Test Finger Diameter: 12 A-A Section Diameter: Ф50
High Light:

IEC 62368 Jointed Test Probe

,

80mm Jointed Test Probe

IEC62368 Jointed Test Probe / Finger Length 80mm Diameter 12mm​





Standard: Conforms to IEC 62368-1:2018 clause 5.3.2, T.3 and Figure V.2, IEC61032 figure 2 test probe B,IEC950 Figure2A, IEC884, IEC335, UL507, EN60529 figure 1, UL1278 figure 8.4 and etc.

Standard description:                Test Finger Probe

IEC62368-1

T.3 Steady force test, 30 N                                                                    Test Finger Probe
The test is conducted by means of the straight unjointed version of the applicable test probe of Figure V.1 or Figure V.2, applied with a force of 30 N ± 3 N for a short time duration of approximately 5 s.

Application: This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger.                                                                                                                                  Test Finger Probe

Test sample: Audio/video, information and communication technology equipment.

Feature: This test finger probe consists of dito, finger, base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°. Customizable: it can be used for anti-electric shock test when equipped with pluggable banana plugs and amphenol connector at the end of the handle , or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).



Parameters(mm):

Model HT-I02 HT-I02T
Name Standard Test Finger Standard Test Finger With Force
Joint 1 30±0.2 30±0.2
Joint 2 60±0.2 60±0.2
Finger length 80±0.2 80±0.2
Fingertip to baffle 180±0.2 180±0.2
Cylindrical R2±0.05 R2±0.05
Spherical R4±0.05 R4±0.05
Fingertip cutting bevel angle 37o 0 -10′ 37o 0 -10′
Fingertip taper 14 o 0 -10′ 14 o 0 -10′
Test finger diameter Ф12 0 -0.05 Ф12 0 -0.05
A-A Section diameter Ф50 Ф50
A-A Section width 20±0.2 20±0.2
Baffle diameter Ф75±0.2 Ф75±0.2
Baffle thickness 5±0.5 5±0.5
Force ---- With force of 10N, 20N,30N


Picture for reference:

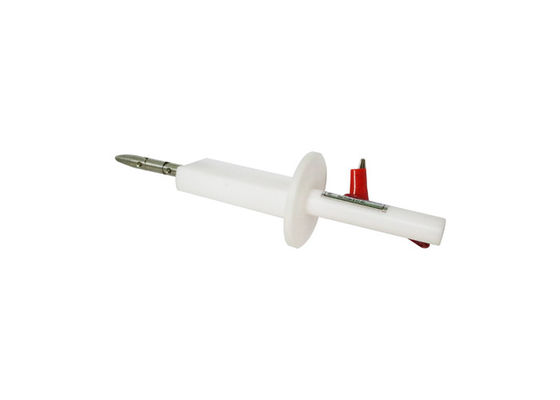

IEC62368 Jointed Test Probe / Finger Length 80mm Diameter 12mm 0

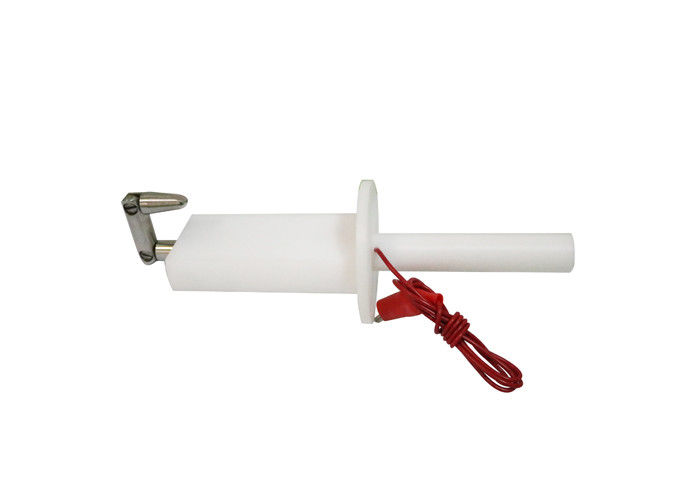

IEC62368 Jointed Test Probe / Finger Length 80mm Diameter 12mm 1

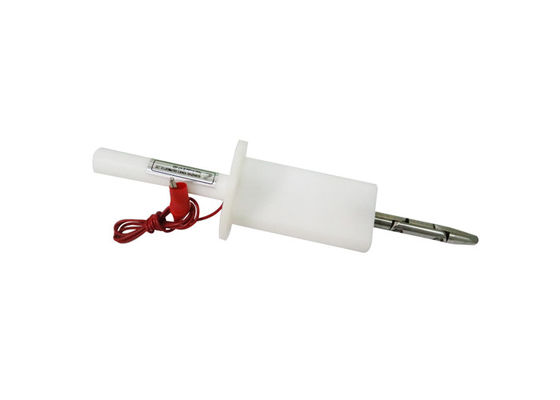

IEC62368 Jointed Test Probe / Finger Length 80mm Diameter 12mm 2
