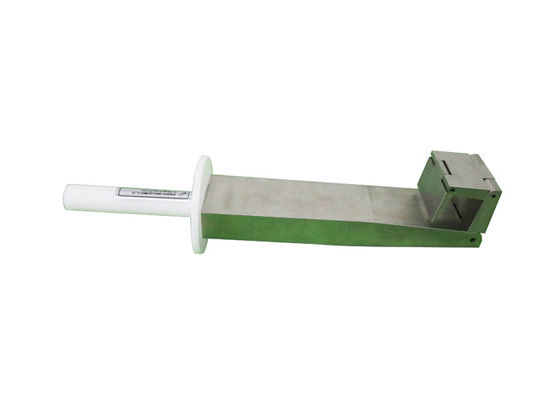

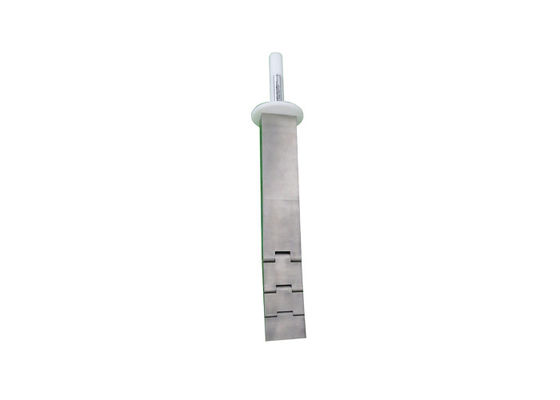

IEC 62368-1 Figure V4 Test Finger Probe Wedge Probe For Testing Document Shredders

IEC 62368-1 Figure V4 Test Finger Probe Wedge Probe For Testing Document Shredders

    • IEC 62368-1 Figure V4 Test Finger Probe Wedge Probe For Testing Document Shredders
    • IEC 62368-1 Figure V4 Test Finger Probe Wedge Probe For Testing Document Shredders
    • IEC 62368-1 Figure V4 Test Finger Probe Wedge Probe For Testing Document Shredders
  • IEC 62368-1 Figure V4 Test Finger Probe Wedge Probe For Testing Document Shredders

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Third part calibration certificate(cost additional)
    Model Number: HT-U14

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiatable
    Packaging Details: Aluminum Box
    Delivery Time: 3 Days
    Payment Terms: T/T
    Supply Ability: 100 sets/ month
    Contact Now
    Detailed Product Description
    Product Name: UL Wedge Probe Warranty: 1 Year
    Lead Time: Within Very Short Time Standards: IEC 62368-1, UL60950 And Etc.
    Material: Nylon Handle + Stainless Steel Probe Application: Hazardous Parts Of Shredder
    Usage: Safeguards Against Moving Parts Testing Distance From Probe Tip Of 180mm: 24mm
    High Light:

    Figure V4 Test Finger Probe

    ,

    Document Shredders Test Finger Probe

    IEC 62368-1 Figure V4 Test Finger Probe Wedge Probe For Testing Document Shredders



    Standard description(IEC 62368-1 8.5.4.2.4): The media destruction device is tested with the wedge probe of Figure V.4 applied in any direction relative to the opening:
    − with a force up to 45 N for a strip-cut type device; and
    − with a force up to 90 N for a cross-cut type device.                     Test Finger Probe
    NOTE Media destruction devices are typically identified as either strip-cut type or cross-cut type. A strip-cut media destruction device shreds the media into long strips using a motor-based shredding mechanism. A cross-cut media destruction device shreds the media two or more ways into tiny particles,            Test Finger Probe
    ypically using a more powerful motor and more complex shredding mechanism.
    Any enclosure or guard that can be removed or opened by an ordinary person or an instructed person shall be removed or opened prior to application of the probes.

    Standard:IEC 62368-1 Figure V.4, UL60950 figure NAF.2 and NAF.3, IEC 60950-1 Fig NAF.2(S5366)and NAF.3(S5370)as well as BS 60950.1108/260/CD and etc.                                                                                                                           Test Finger Probe

    Application:It is used to test whether the hazardous parts of shredder can be touched by people.

    Test sample:Paper shredder

    Feature:Nylon handle + probe, it is manufactured according to the standard figure.

    Parameters:

    IEC 62368-1 Figure V4 Test Finger Probe Wedge Probe For Testing Document Shredders 0

    Tolerances on linear dimensions without specific tolerances:
    ≤ 25 mm: ± 0,1 3 mm
    > 25 mm: ± 0,3 mm



    NOTE The thickness of the probe varies linearly, with slope changes at the following points along the probe:

    Distance from probe tip

    mm

    Probe thickness

    mm

    0 2
    12 4
    180 24

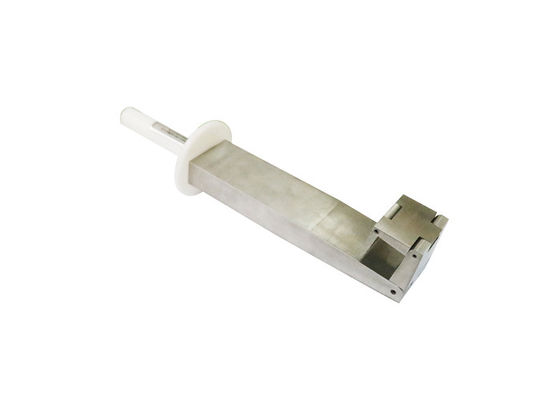

    Picture for reference:

    IEC 62368-1 Figure V4 Test Finger Probe Wedge Probe For Testing Document Shredders 1
