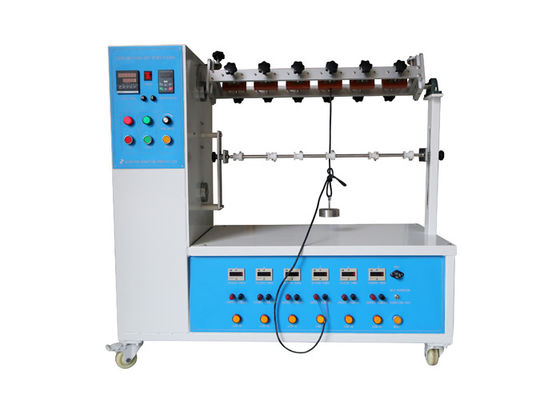

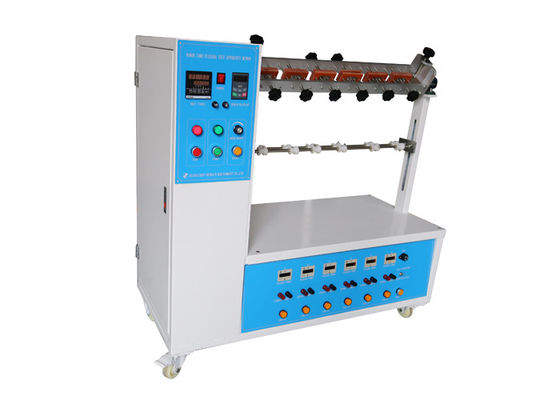

IEC 60884-1 Figure 21 Plug Socket Tester Apparatus For Flexing Test 10-60rpm

IEC 60884-1 Figure 21 Plug Socket Tester Apparatus For Flexing Test 10-60rpm

IEC 60884-1 Figure 21 Plug Socket Tester Apparatus For Flexing Test 10-60rpm
IEC 60884-1 Figure 21 Plug Socket Tester Apparatus For Flexing Test 10-60rpm

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HC9919

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Name: Power Cord Flexing Tester Standard: IEC 60884-1
Power Supply: AC220V 50Hz Application: Flexing Test
Flexing Angle: 45°, 60°, Or 90°, Adjustable Flexing Rate: 10~60rpm (frequency Conversion)
Weights: 20N, 10N. 6 Each Test Station: 6 Stations, With 6 Sets Of Clamp Device
High Light:

Figure 21 Plug Socket Tester

,

IEC 60884-1 Plug Socket Tester

IEC 60884-1 Figure 21 Plug Socket Tester Power Cord Flexing Tester 10~60rpm



Product Introduction:

The plug cord flexibility test apparatus is designed and manufactured according to the standard requirement of IEC 60884-1 figure 21, which is used to process the bending test for the power cord of non rewirable plugs, appliances and similar electrical appliances (electric tools).

The device can be preset test times (up to 999999), it can carry out the test and calculate of the numbers of tests automatically. When the test times reach to the preset value, the system will shut down automatically and completion signals sound. Once the test apparatus connects to external load, it can be used to process test with load.



Standard: IEC 60884-1 2013 clause 23.4 and figure 21, UL817, VDE0620

Application: This device is used for test the flexing properties of non-rewirable plugs (terminals) and non-rewirable portable socket-outlets, check the fatigue strength of the power cable and jacket.

Test sample: Non-rewirable plugs and non-rewirable portable socket-outlets

Feature: The speed reducing motor controls the crank sliding block structure to do the reciprocating motion, the left and right flexing angles are adjusted by manual scale, and angle automatic adjustment touch screen model can be customized.

Tester will automatic shutdown when preset test times completed.

Parameters:

  1. Power supply: AC220V 50Hz
  2. Flexing angle: Swivel angle on either side for 45° , 60°, or 90°. Adjustable
  3. Flexing rate: 10~60rpm (frequency conversion), the default 60 times /min
  4. Weights: 20N, 10N. 6 each(UL 113g and 284g weights can be customized)

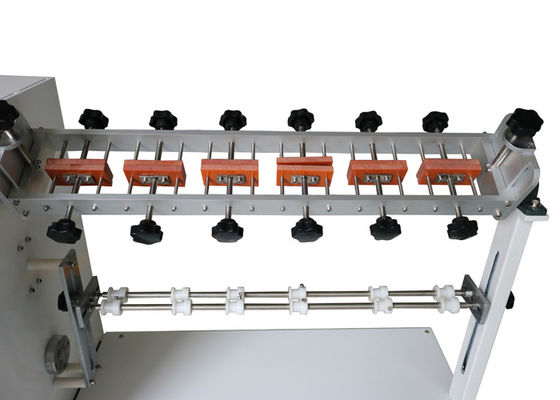

  5. Test station: 6 stations, with 6 sets of clamp device
  6. Test times: one general counter, 6 individual counters. 0~999999 preset
  7. Mechanical theory: The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action.
  8. Cord broken indicator: Φ25 red indicating light
Power Supply AC220V, 60Hz
Numbers of Test Stations 6, with 6 sets of clamps
Numbers of flexing times 1-999999 (adjustable). With 6 independent counters corresponding to each station, and there is a general counter
Rate of Flexing 10~60 rpm (adjustable)
Flexing Angles Swivel angle on either side for 45°, 60°, 90°
Sample connecting wires 6 PCS
Weights 10N/20N*6(the weight of UL113g and 284g)
Breaking indication Indicator display
Dimensions L*W*H=870mm *610mm* 820mm
Conforms to standard IEC884-1 Figure 21 and clause 23.4, IEC320-1, VDE0620



Mechanical theory

The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action.
