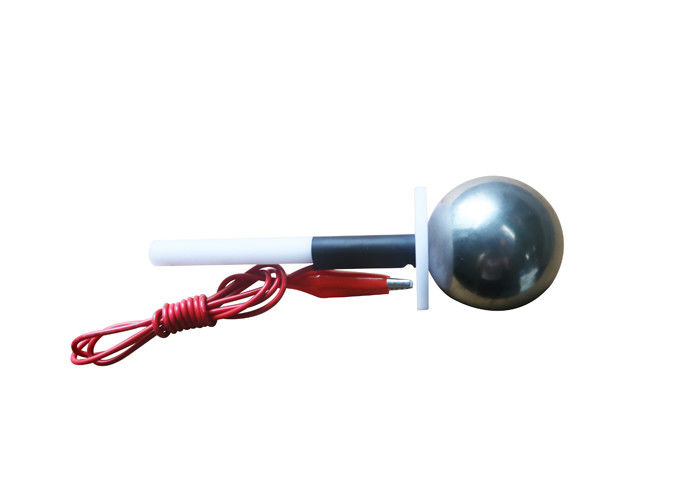

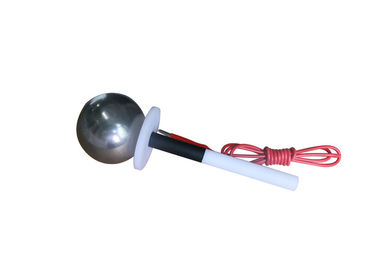

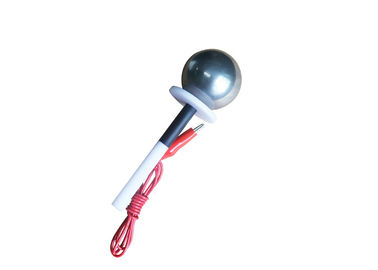

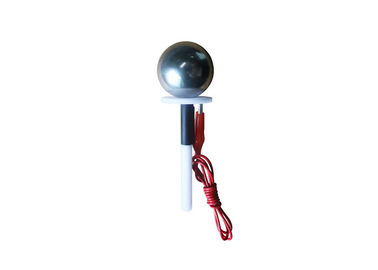

IEC60065 Sphere Probe 50MM Ingress Protection Test Equipment

IEC60065 Sphere Probe 50MM  Ingress Protection Test Equipment
IEC60065 Sphere Probe 50MM  Ingress Protection Test Equipment IEC60065 Sphere Probe 50MM  Ingress Protection Test Equipment IEC60065 Sphere Probe 50MM  Ingress Protection Test Equipment IEC60065 Sphere Probe 50MM  Ingress Protection Test Equipment

Large Image :  IEC60065 Sphere Probe 50MM Ingress Protection Test Equipment

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HT-I01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Aluminum box
Delivery Time: 3 working days
Payment Terms: T/T
Supply Ability: 30 set per month
Detailed Product Description
Standard: IEC60529, IEC60065, IEC61032 Etc. Application: Degrees Of Protection Provided By Enclosures
Function: Protection Against Access To Hazardous Parts Rigid Test Ball Diameter (metal): SФ50+0.05
Baffle Diameter (nylon): Ф45±0.2 Baffle Thickness: 4
Handle Diameter: Ф10 Handle Length (nylon): 100
High Light:

IEC 60529 ingress Protection Test Equipment

,

50MM Ingress Protection Tester

IEC 60529 IP1X Ingress Protection Test Equipment Test Sphere Probe Sphere of 50mm





Description:

IEC 60529

12.3 Acceptance conditions
The protection is satisfactory if adequate clearance is kept between the access probe and hazardous parts.
For the test of first characteristic numeral 1 , the access probe 50 mm diameter shall not completely pass through the opening.

IP code probes are intended to verify
— the protection of persons against access to hazardous parts;
— the protection of the equipment against the ingress of solid foreign objects.

IEC 61032                                                                                                                                Ingress Protection Test Equipment
6.1.2 Access probes
This probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with the back of the hand.



Standard:IEC61032 fig.1, IEC60529 IP1 and IEC60065.

Application:This probe is intended to verify protection the back of hand of persons against access to hazardous parts. It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:This test probe can be customized. It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.



Parameters:





Model HT-I01 HT-I01T
Name Test probe A Test probe A with force
Rigid test ball diameter (metal) SФ50+0.05 0 SФ50+0.05 0
Baffle diameter (nylon) Ф45±0.2 Ф45±0.2
Baffle thickness 4 4
Handle diameter Ф10 Ф10
Handle length (nylon) 100 100
Force ---- With force of 0-50N



IEC60065 Sphere Probe 50MM  Ingress Protection Test Equipment 0

IEC60065 Sphere Probe 50MM  Ingress Protection Test Equipment 1
