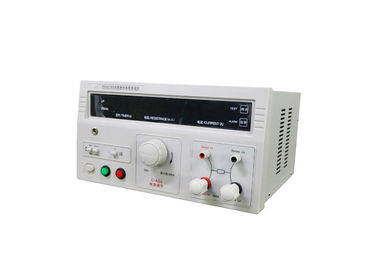

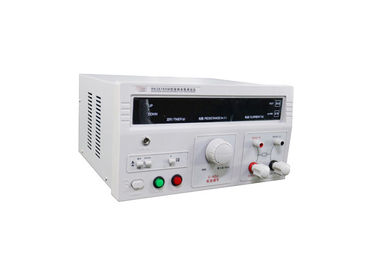

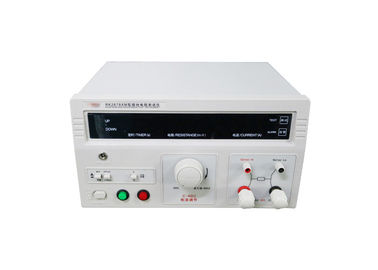

Digital Display Ground Resistance 70A IEC Test Equipment

Digital Display Ground Resistance 70A IEC Test Equipment

  • Digital Display Ground Resistance 70A IEC Test Equipment
  • Digital Display Ground Resistance 70A IEC Test Equipment
  • Digital Display Ground Resistance 70A IEC Test Equipment
  • Digital Display Ground Resistance 70A IEC Test Equipment
Digital Display Ground Resistance 70A IEC Test Equipment
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate (Cost Additional)
Model Number: RK2678XM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Carton box
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Standard: IEC 60884-1 2013 Clause 11 Etc. Test Current: 30A/70A
Current Accuracy: ±5% Measure Range: 0~200/600mΩ
Alarm Range: 50~600mΩ Model: RK2678XM
High Light:

iec tester

,

laboratory test equipment

IEC 60884 IEC Test Equipment Ground Resistance Measurement Tester AC 30A 70A

Standard: IEC 60669.1 clause 11, IEC 60884-1 2013 clause 11

Application: This device is use to measure the resistance between equipment shell and ground line of all kinds of electric motors, electric appliances, instruments and meters, household appliances and others, check whether the resistance in compliance with the requirements.

Test sample: Internal components of electrical equipment

Feature: Detect the (contact) resistance between the exposed parts of the electrical equipment and the general grounding terminals.

Parameters:

Model RK2678XM(30A) RK2678XM(70A)
Test current AC: 5~32A AC: 5~70A
Current accuracy ±5%
Measure range 10~200 mΩ 200~600 mΩ
Resistance resolution 0~200mΩ:0.1mΩ 200~60Mω: 1mΩ
Resistance accuracy ±5%±3digit
Test time 0~999s
Alarm range 50~600mΩ
Display LED digital display(current, resistance, time)
Option Unqualified warning
Power supply 220V±10%, 50Hz±5%
Work environment 0℃~40℃, ≤85%RH
Dimension 320×280×180mm
Weight 10kg 15kg
Accessory Test line, power cord

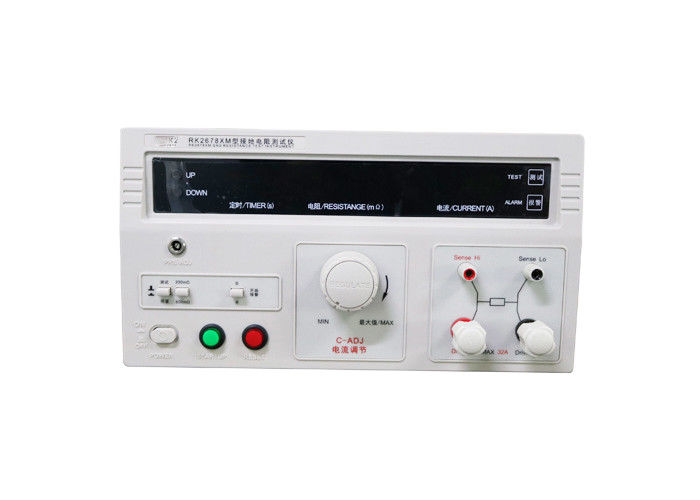

Picture forreference:

Digital Display Ground Resistance 70A IEC Test Equipment 0
