|Place of Origin:||China|
|Certification:||calibration certificate (cost additional)|
|Minimum Order Quantity:||1 set|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||10 set /month|
|Standard:||IEC60335||Test Stations:||2 Stations|
|Control System:||PLC Programmable Control||Door Open /close Angle:||0-120°|
|Door Open /close Speed:||0-360°/s||Operation:||Touch Screen Operation|
|Sample Range:||Tumble Washing Machine, Wave-wheel Washing Machine||Driving Mode:||Servo Motor|
portable appliance testing equipment,
portable appliance tester

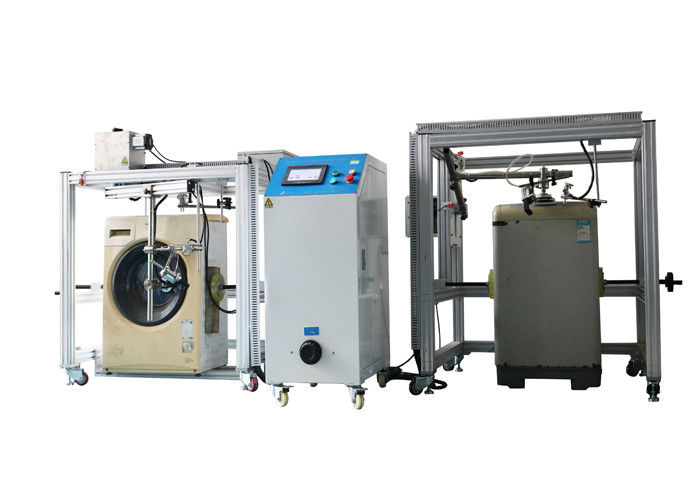

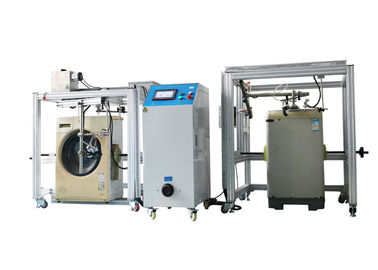

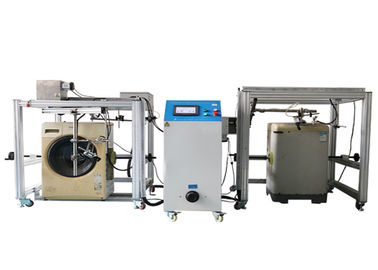

IEC60335 Tumble And Wave-Wheel Washing Machine 2 Stations Door Performance Endurance Tester
Standard: IEC 60335-2-7 household and similar electrical appliances – safety: part 2-7:particular requirements for washing machines, clause 20.101; IEC 60335-2-11 household and similar electrical appliances – safety: part 2-11:particular requirements for tumble dryers, clause 20.101.
Application: The device is used for mechanical endurance test to doors of washing machine and tumble dryer.
Test sample: Washing machine, tumble dryer

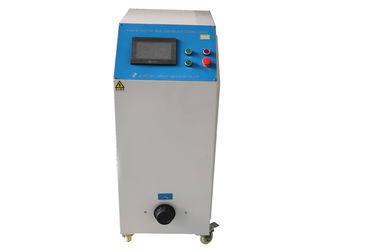

Feature: The equipment adopts advanced PLC intelligent control system, touch screen humanized operation interface to make recording and display more accurate; with preset test times, on current detection, load voltage regulation and display, test speed, test stroke, open / close door pull force setting, pull force transient curve display, test data storage and query, fault alarm and other functions, can be analyzed by the data record whether the test sample is qualified or not. The whole machine is divided into tumble washing machine test station, wave-wheel washing machine test station, and beautiful appearance; stable performance and convenient operation. It is the first choice for large metrology institutions and laboratories.
|2||Test stations||2 stations, tumble washing machine test station, wave-wheel washing machine test station|
|3||Operation interface||7-inch color LCD touch screen|
|4||Driving mode||Servo motor|
|5||Control system||PLC programmable control|
0～999999 times, can be preset and displayed
|7||Door open /close angle||0-120°,can be preset|
|8||Door open /close speed||0-360°/s, ≥1.5/s can be preset|
1.tumble washing machine door interlocks test
2.tumble washing machine door endurance test
3.tumble washing machine door structure test
4.wave-wheel washing machine lid endurance test
5. wave-wheel washing machine water extraction open lid test
|10||Test environment||Atmospheric pressure 80 ~ 106kpa; ambient temperature 5 ~ 40 ° C; relative humidity (20 ~ 80)% RH; use place: no vigorous shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation|
