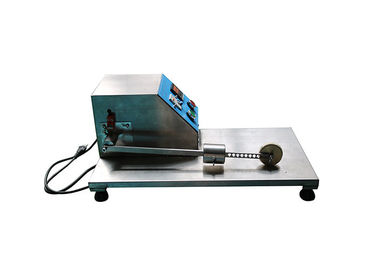

1 Station Electrical Appliance Tester 220V Label Marking Abrasion IEC60730-1

1 Station Electrical Appliance Tester 220V Label Marking Abrasion IEC60730-1

1 Station Electrical Appliance Tester 220V Label Marking Abrasion IEC60730-1
1 Station Electrical Appliance Tester 220V Label Marking Abrasion IEC60730-1

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate (cost additional)
Model Number: IN-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 20 days
Payment Terms: T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Standard: IEC60730-1 Figure 8 Power: 220V
Test Rate: 48rpm Test Stroke: 20mm
Test Station: 1 Station Friction Wheel: Φ65*7.5mm
Product Name: Label Marking Abrasion Test Machine Warranty: 1 Year
High Light:

electrical appliance tester

,

portable appliance testing equipment

1 Station Electrical Appliance Tester 220V Label Marking Abrasion IEC60730-1



Production introduction:



This testing apparatus is design and manufactured according to IEC60730-1 standard figure 8 and annex A requirements, used for testing the controller marking durability performance.

The apparatus comply with the dimensions requirements of IEC 60730-1 Figure 8. Test times can be set from 1 to 999999 (default as 12 times), test rate 48 rpm. It is a easy operated professional equipment.



Main technical parameters:



Equipment Markings durability tester
Test station 1 station
Test stroke 20mm
Test rate 48rpm
Test times 1~999999, default as 12times
Sliding weight 500g. Strip weight 250g, with weight 750g
Brass washer Φ60*2.5mm
Friction wheel Φ65*7.5mm
Power supply 220VAC 50Hz
Standard IEC 60730-1 Figure 8, Annex A



Test Operation

  1. Test Preparation: Insert the power supply ,turn on the power supply switch ,preset the test times as 12 times .
  2. Select the corresponding weight to install the sample.
  3. Press start button , the device reciprocates at a rate of 48 rpm and a stroke of 20mm ,it will be automatically stop when reaches the test times .The stop button lights and sound an alarm .

Presetting and parameters of instrument

Counter/Timer: Press down [MD] for three seconds to enter setting state→ the display mode is[IN]→press ▲or ▼to select [U]mode →repress [MD]→the display mode is [CPS]→press ▲ or ▼to select [30]→this analogy→ finally press down [MD]for three seconds to complete the setting procedure. Press<left arrow to select the figures,and then press ▲upward or ▼downward to select the required number,and then press[MD] to confirm it. For the setting method in detail, please refer to the detailed instructions to the setting of various parameters.
Counter
Input mode IN U   Input logic SG PNP
Counting speed CPS 30 Resetting time RST 20
Output mode OUT F Counting/Timer C-T COUN
Output time OUT.T HOLD

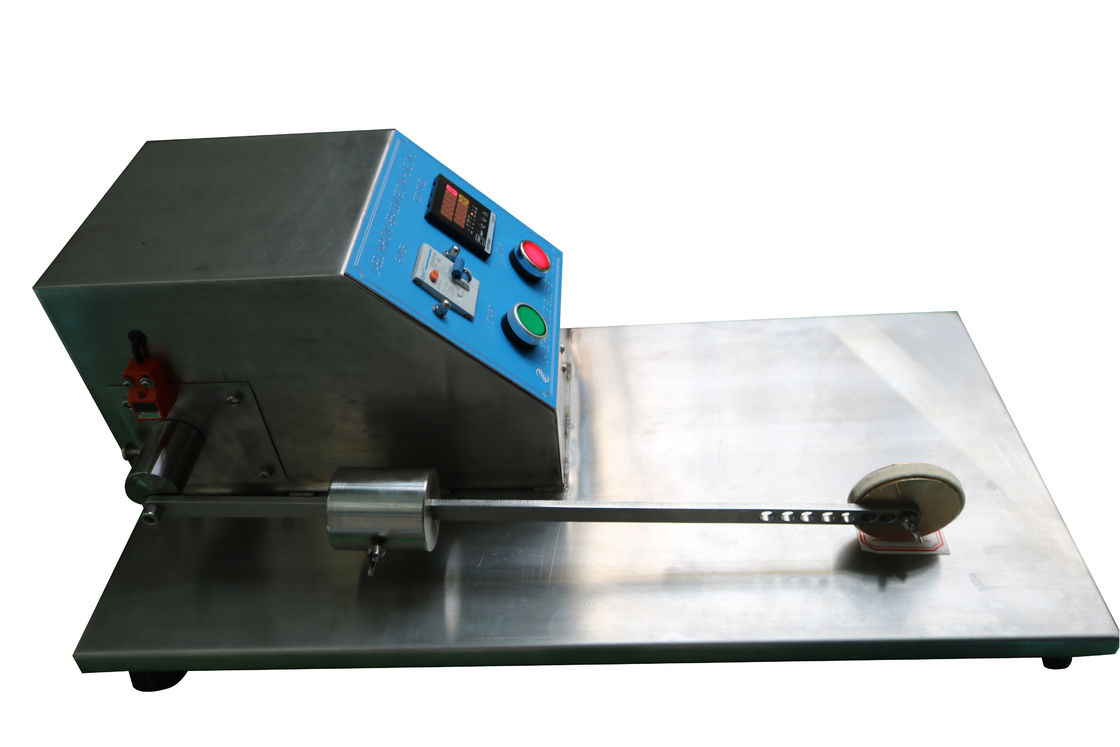

1 Station Electrical Appliance Tester 220V Label Marking Abrasion IEC60730-1 0

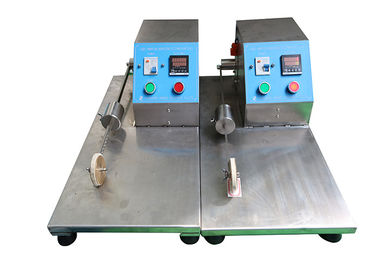

1 Station Electrical Appliance Tester 220V Label Marking Abrasion IEC60730-1 1

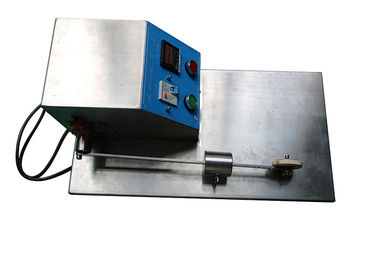

1 Station Electrical Appliance Tester 220V Label Marking Abrasion IEC60730-1 2
