LCD Touch Screen Electrical Appliance Tester , Water - Tap With Sensor Switch Endurance 2 Station Tester EN15091

LCD Touch Screen Electrical Appliance Tester , Water - Tap With Sensor Switch Endurance 2 Station Tester EN15091

    • LCD Touch Screen Electrical Appliance Tester , Water - Tap With Sensor Switch Endurance 2 Station Tester EN15091
    • LCD Touch Screen Electrical Appliance Tester , Water - Tap With Sensor Switch Endurance 2 Station Tester EN15091
    • LCD Touch Screen Electrical Appliance Tester , Water - Tap With Sensor Switch Endurance 2 Station Tester EN15091
    • LCD Touch Screen Electrical Appliance Tester , Water - Tap With Sensor Switch Endurance 2 Station Tester EN15091
  • LCD Touch Screen Electrical Appliance Tester , Water - Tap With Sensor Switch Endurance 2 Station Tester EN15091

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: calibration certificate (cost additional)
    Model Number: HJ0642

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Packaging Details: plywood
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 10 set /month
    Contact Now
    Detailed Product Description
    Standard: EN15091 Control: PLC
    Test Station: 2 Stations Driving Mode: Servo Motor
    Forward / Backward Speed: 250-500mm/s Forward Pause Time: 0-99.9s

    PLC Water-Tap With Sensor Switch Endurance 2 Station Tester EN15091

    Product information :

    It is designed and manufactured according to EN15091:2013 Sanitary tapware-Electronic opening and closing sanitary tapware, the test sample is Water-tap with sensor switch, It is used for endurance testing of the sensor switch of the water-tap to verify its reliability.



    Test principle

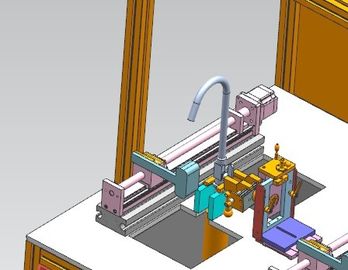

    The robot arm is driven by the servo motor to drive the human body analog sensing resistor to repeatedly enter and exit the sensing area of the sensor switch at a certain speed, so as to repeatedly turn on and off the sensor switch, so as to achieve endurance test. At the same time, the circulating water supply system and the hot and cold water conversion auxiliary mechanism are configured to simulate the normal operation process.



    Structure

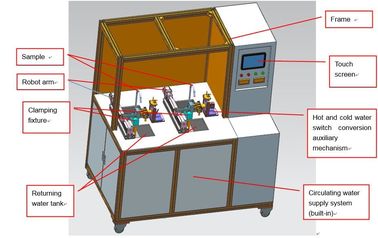

    The equipment consists of an electrical control cabinet, a circulating water supply system, a frame and clamp fixture mounted on the frame.

    Equipment dimensions: about: 1500 × 1300 × 1300 (mm) W × D × H

    Equipment weight: 180kg



    Performance parameters

    Test station 2 stations
    Electrical control mode PLC programmable control, 7-inch color LCD touch screen
    Driving mode Servo motor
    Sample clamping method Special fixture clamping, provide 4 sets fixtures of different sample
    Detection tool Analog human body sensing resistor
    Forward / backward speed 250-500mm/s , can be preset
    Robot arm moving stroke 0-600mm, can be preset (0-250mm can be set freely on one side)
    Test times 0-999999 times, can be preset and displayed
    Forward pause time 0-99.9s, can be preset
    Backward pause time 0-99.9s, can be preset
    Water supply Circulating water pump, normal temperature water tank, heating constant temperature water tank (RT -80 °C), filtration device, returning water tank
    Auxiliary action mechanism Hot and cold water switch conversion auxiliary mechanism
    Safety protection device
    Power Leakage protection, overload and short circuit protection
    Motor Overload and short circuit protection



    Overview of test projects and processes:

    1. Select the corresponding fixture according to the sample.

    2. According to the requirements of the sample, set the robot arm stroke, forward/backward speed, forward/ backward pause time, total test times, and select the hot and cold water switch conversion auxiliary mechanism if the water-tap has the hot and cold water transfer switch. Press Start, the device will automatically run according to the set parameters, automatically stop when the number of tests is reached.



    Use environment

    Power supply: AC220V±10%/50-60Hz, power 6KW

    Air source: 0.5-0.7MPa compressed air

    Use place: atmospheric pressure 80 ~ 106kpa; ambient temperature 5 ~ 40 ° C; relative humidity (20 ~ 80)% RH; no vigorous shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation.
