IP Code Waterproof IPX2 IPX3 IPX4 Rain Test Chamber For Electrical Products IEC 60529

IP Code Waterproof IPX2 IPX3 IPX4 Rain Test Chamber For Electrical Products IEC 60529

    • IP Code Waterproof IPX2 IPX3 IPX4 Rain Test Chamber For Electrical Products IEC 60529
    • IP Code Waterproof IPX2 IPX3 IPX4 Rain Test Chamber For Electrical Products IEC 60529
    • IP Code Waterproof IPX2 IPX3 IPX4 Rain Test Chamber For Electrical Products IEC 60529
    • IP Code Waterproof IPX2 IPX3 IPX4 Rain Test Chamber For Electrical Products IEC 60529
  • IP Code Waterproof IPX2 IPX3 IPX4 Rain Test Chamber For Electrical Products IEC 60529

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Calibration Certificate (Cost Additional)
    Model Number: HC-500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Customized
    Packaging Details: Plywood
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 10 set /month
    Contact Now
    Detailed Product Description
    Control: PLC Standard: IEC 60529
    IP Code: IPX1/2/3/4 Dripping Hole: 0.4 Mm
    Turntable Diameter: 400 Mm Oscillating Tube Radius: 200mm Or 400mm

    IEC 60529 IP Code Waterproof Degrees PLC Control IPX1 IPX2 IPX3 IPX4 Rain Testing Equipment



    Product introduction:

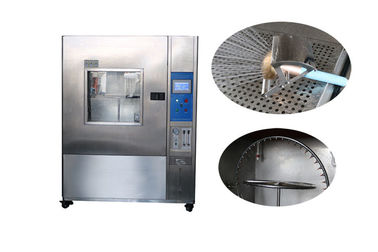

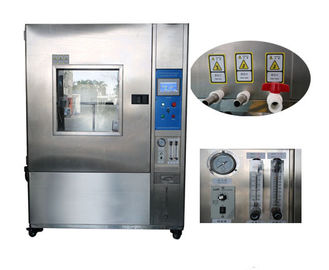

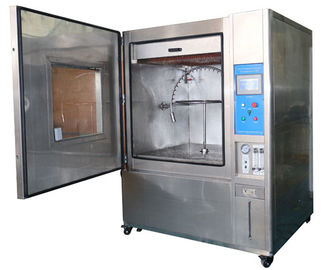

    This integrated IPX1 IPX2  IPX3 IPX4 testing chamber is suitable for the testing electrical products' enclosures and sealed parts performance in the rain environment, whether they can ensure the good performance of equipment and components. The equipment can be realistically simulated water dripping , water spraying, water splashing etc. The comprehensive control system and the frequency conversion technology makes the swing angle and the swing frequency of the oscilating tube can be adjusted automatically.

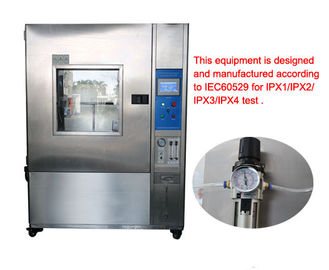

    IPX1/2 IPX3/4 waterproof degrees test equipment are designed and manufactured according to IEC 60529 < Degrees of protection provided by enclosures (IP Code)>. This equipment can achieve IPX1, IPX2, IPX3, IPX4 waterproof degrees testing purposes, which are widely adopted by electrical and electronic products certification institutions, testing organizations and production enterprises.



    Technical Parameters:

    Inner Chamber 800mm*800mm*900mm
    Outer Chamber 1150mm*1450mm*1900mm
    Rotating speed(rpm) 1 ~5 adjustable
    Turntable Diameter 400 mm
    Turntable Height 200 mm, it is adjustable
    Dripping hole 0.4 mm
    Dripping area 600X600 mm
    Dripping Height 120 mm
    Oscillating tube radius 200 mm or 400mm or customized
    Swing angle range of the oscillating tube ±60°,±180°
    Needle hole φ0 .4 mm
    Distance between holes 50 mm
    Water flow of each hole 0.07 L/min +5%
    Spray pressure 80-150Kpa
    Swing angle Max.±150°



    HongCe has various of waterproof testing equipment based on the requirements of IEC 60529 standard, we can also offer customized ingress protection testing equipment or systems according to client's specific products or testing requirements.



    HongCe IPX1~9 waterproof test system includes following:

    1. Vertical Drip Rain Testing Machine : It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX1 and IPX2

    2. Oscillating Tube Tester for IPX3 and IPX4, Spray Nozzle : It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX3 and IPX4

    3. Handheld Jet Nozzle: It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX5 and IPX6

    4. Smart Water Supply And Control System: This smart water supply and control system is applicable to:

        (a) Water supply for IPX1~IPX6 waterproof test

        (b) IPX7 water immersion test

        (c) Water storage for IPX8 water tightness test

        (d) Automatic control for the whole waterproof equipment

    5. IPX8 Water Tightness Pressure Tester: It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX8.

    6. High Temperature & Pressure Jet Waterproof Test Chamber: It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX9.



    Please click the link IEC60529 waterproof testing equipment.pdf to get the whole sets of waterproof testing equipment list .
