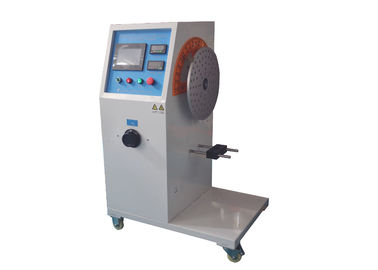

4KW Flexing Test Apparatus Household Appliance Supply Cord IEC60335 PLC Control

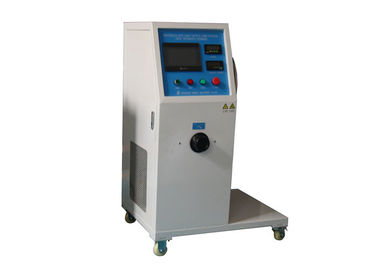

4KW Flexing Test Apparatus Household Appliance Supply Cord IEC60335 PLC Control

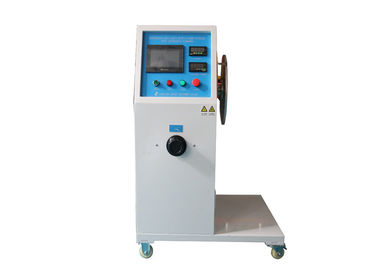

4KW Flexing Test Apparatus Household Appliance Supply Cord IEC60335 PLC Control

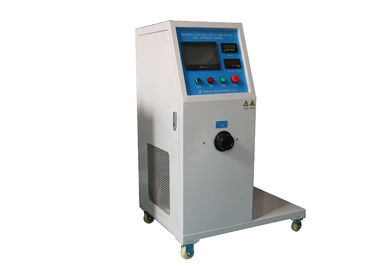

4KW Flexing Test Apparatus Household Appliance Supply Cord IEC60335 PLC Control

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate (cost additional)
Model Number: HJ0608A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Model: HJ0608A Flexing Angle: 0-360°
Control: PLC Control Language: English
Configuration: 0~4KW Bearing: Max. 10kg
High Light:

electrical appliance tester

,

portable appliance testing equipment

4KW Household Appliance Supply Cord IEC60335 PLC Control Flexing Test Apparatus





Standard: Clause 23.3 and 25.14 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements, IEC60335-2-14 and etc.



Application: It is used to check that the supply cord of the small household appliances (such as Coffee pot / electric iron) and lamps is adequately protected against excessive flexing where it enters the appliance.



Test sample: Small household appliances, such as coffee pot, electric iron, toaster, luminaires and etc.



Feature: The test stations, test angles, load voltage can be customized. The test cycles, speed, voltage and etc. can be preset.



Technical Parameters:



Item Name Parameters
Flexing angle 0-360°. Can be preset
Flexing speed 0~60 rpm, can be preset
Test times 0~999999 times, can be preset and displayed
Power 120V 60Hz
Control PLC programmable control
Drive Servo motor
Operation Touch screen intelligent operation
Configuration 0~4KW transformer, test current can be displayed
Bearing Max. 30kg
Test station 1 station
Specimen fixture Universal fixtures, with center gage of rotation
Load weights 5N*1,10N*1
Standards IEC 60335-1, IEC 60335-2-14, GB4706.1, GB2099



Maintenance

  1. Before testing, please check the components of the fixture is loose or not.
  2. Before testing, please check whether the load socket is damaged or not.
  3. Before testing, please check whether the manipulator swivel smooth by operate the tester on Manually Speed.
  4. Under non-work state, please take off the test samples and weights, turn off the load power supply and external power supply.
  5. Please do not place any heavy and sharp objects on the equipment.
  6. Please do not thrust the machine components, in order to avoid position offsetting.
  7. Please keep away from liquid, in order to avoid electrical circuit short.
  8. Please read this user manual before operation.

Common Faults And Treatments

No. Fault Reason Treatment





1

Turn on the POWER switch, but the indicator light not turn on The external power supply is not connected Please connect to the external power supply
The fuse is broken Find out the reason and change the fuse.
The indicator light damaged Replace the light





2

Turn on the POWER switch, Touchscreen not work The internal DC24V power supply is in problem Replace the DC24V power supply
Touchscreen damaged Replace the touchscreen
3 Touchscreen no response Connection to PLC loose Reconnect
Touchscreen damaged Replace the touchscreen
4 Load power no power supply Load socket damaged Replace the socket
The fuse is broken Change the fuse





5





Press down Start button, but the manipulators do not work.

The display value and preset value of test times are the same Press Count Cleared
The E-STOP button is not reset Release E-STOP button
There is foreign object in the machine, the machinery is stuck Remove the foreign object
It is not under auto test mode Press Start button
Connection to motor loosen Reconnect
Not in starting position Homing
6 Noise Swivel speed low or too high Reset the speed
Connection to motor loosen Reconnect



 4KW Flexing Test Apparatus Household Appliance Supply Cord IEC60335 PLC Control 0

4KW Flexing Test Apparatus Household Appliance Supply Cord IEC60335 PLC Control 1
