|Place of Origin:||China|
|Certification:||calibration certificate (cost additional)|
|Minimum Order Quantity:||1 set|
|Delivery Time:||30 days|
|Supply Ability:||10 set /month|
|Control Operation Mode:||Electrical Control, Button Operation||Arc Strike Current:||33A±0.5A|
|Power Factor:||0.5||Arc Strike Speed:||40 Times/min|
|Electrode Separation Velocity:||254±25㎜/S||Electrode Material:||Copper ，stainless Steel|
flame test equipment

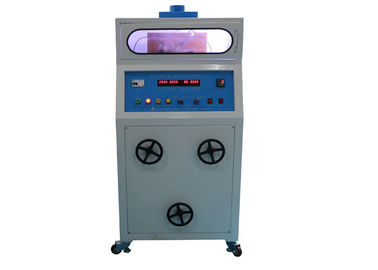

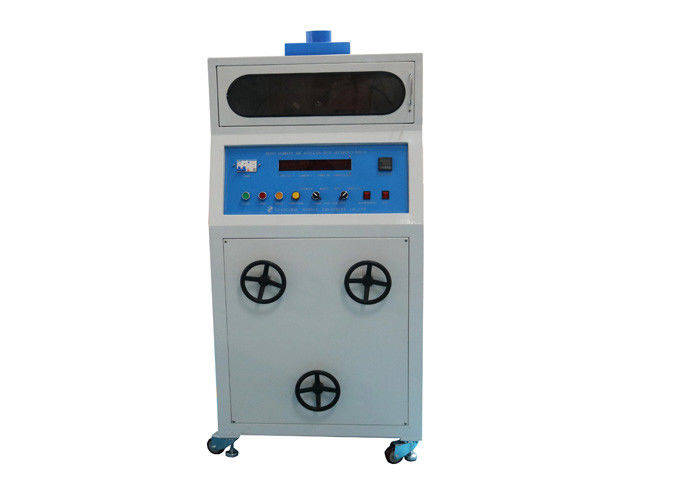

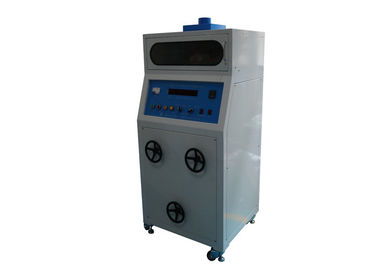

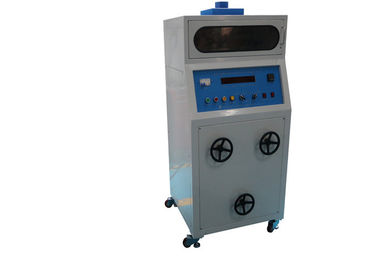

IEC60950 Heavy Current Ignition Tester Button Operation With Smoke Vent
Standard:IEC 60950-1,BS EN 60950-1,BS 7002, UL746A,IEC60947.1, IEC730.1.
Application:It is suitable for arcing resistance test of electric and electronic products, household appliances and its materials. The working principle is to simulate the electric leakage on the insulator which may cause among different polar of live parts or between live parts and grounded (earthed) metal parts. It is used to measure and assess the arc resistance performance of insulator under the prescribed voltage.
Test sample:Information technology equipment, low voltage switch and control equipment parts.
Feature:Heavy current ignition tester adopts dual electrodes. With specific current (33A) and power factor (COSφ0.5), according to a certain arc strike speed (254mm/s) and repetition frequency (40 times/min), repeatedly arc strike to 200 times on the surface of specimen. The large current arc ignition performance (HAI) can be assessed according to whether the sample can be ignited. The smaller of the grade number, the more difficult for burning material.
|Control operation mode||Electrical control, button operation|
|Arc strike current and power factor||When the power factor is 0.5, the current is 33A±0.5A|
|Arc strike speed||40 times/min|
|Electrode separation velocity||254±25㎜/S|
|Arc strike times||0-9999 can be preset|

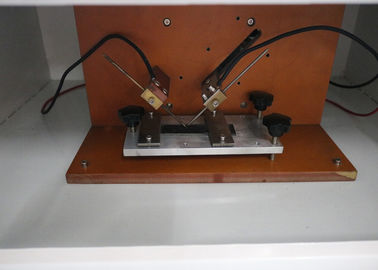

Static electrode—copper,dia.Ф3.5mm (Ф3.2)×152mm,top bevel angle 30°
Moving electrode—stainless steel,diaФ3.5mm(Ф3.2)×152mm, top cone angle 60°
|Electrode included angle||Form 45° with level,electrode head radius of curvature 0.1mm|
|Test procedure||Automatic control, independent exhaust|
|Lighting||Equip with lighting in the test chamber, with control|
|Test chamber and dimension||LWH:800×700×1600mm,300kg|
a) Do not start the testing or debugging if the current and voltage regulators are on the high gear positions, in order to avoid circuit breaker tripping which is caused by instantaneous large current.
b) The electrode is particularly susceptible to be damaged, after each testing, the electrode should be trimmed clearance.
c) The instrument is equipped with a door protection switch, the door must be completely closed.
d) The device will generate much heat, it should be placed in a ventilated place, the back of the device should keep a certain distance from other objects to ensure the fluidity of air, and please do regular checks for exhaust fan to ensure safety.
e) The power supply of the device requires ground protection
f) The polarity colors of the power cord: Brown is for (L) line, blue is for (N) line, black is for (E) line.
