| Force Range: | 1~20KN | Tester Architecture: | Free Stand & Vertical Extrusion |
|---|---|---|---|
| Power: | 2.2KW | Force Deviation: | ≤±1% Full-scale Range |
| Crushing Velocity: | ≤±0.5% Full-scale Range | ||
| High Light: | battery test chamber,battery discharge test equipment |
||

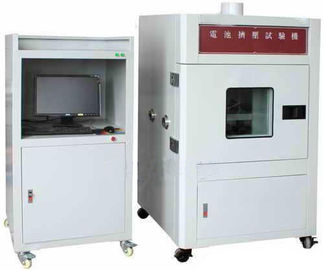

SN/T 1414.1-2004 Computer Type Battery Crush Nail Penetration Tester
Computer Type Battery Crush Nail Penetration Tester Conform SN/T 1414.1-2004 To Simulate Crush Conditions Of 1~20KN
Standard
The Computer Type Battery Crush Nail Penetration Tester is conforms to the IEC 60086-4:2000 UL1642, SN/T 1414.1-2004,SN/T 1414.3-2004, SJ/T 11169-1998, YD 1268- 2003, SJ/T 11170-1998, IEC62133-2012, UN 38.3, MT/T 1051-2007.
Application
This Battery Crush Nail Penetration Test Machine is designed to simulate actual using environments for the lithium battery such as battery in crush and feedback the various results in different crushing conditions.
Principle
Battery is placed between two crushing boards, The motor drives the screw to transmit the crushing force onto battery. The screw returns if a pre-set force value reached ,or voltage
dropped to a pre-set value, or the battery deformed then repeat a cycle between periodic crushing and return.
Technical Parameters
| Force Range | 1~20KN |
| Tester Architecture | Free Stand & Vertical extrusion |
| Power Input | 220V 50 Hz( can custom by client) |
| Force Deviation | ≤±1% Full-scale Range |
| Unit Shift | Kgf,lbf,n,kn,kpa,mpa |
| Crushing Velocity | 1~ 900mm/min(controllable) |
| Crushing Velocity Accuracy | ≤±0.5% Full-scale Range |
| Crushing Travel | 300mm |
| Crushing Motion Accuracy | ≤±1% Full-scale Range |
| Available Battery Size | W400 X D400 X H300mm |
| Voltage-Reducing Controlling Method | The pressing plate returns or returns after crushing force continues for a fixed time if voltage drops into a fixed value. |
| Crushing Force | The pressing plate returns or return after crushing force continues within pre-set time if pressing force reach set value. |
| Displacement Control | After paused in a period if the pressing tray down to predesigned position , pressing tray will continue second displacement and pause, by repeating such a working mode till to final displacement and pressing tray return after a period maintaining. |
| Emergency Button | This crushing tester designed with Emergency stop function |
| Voltage Resolution | 1mv |
| Test Terms | Force, Displacement (Deformation), Voltage, one from three projects or all three projects |
| Crushing Time Maintaining | 0~99 Hours 99 Minutes & 99 seconds, time can be controllable to control the deformation and stop if test fulfilled. |
| Industrial Communication | Computer Control,ensure stability and real-time of remote sampling, with explosion-proof function, all data can be store and print through computer with Excel format. |
| Driving Method | Servo Motor Driving |
| Nail Penetration Speed | 1 ~ 40mm/s(Controllable) |
| Tungsten steel needle | Φ3X100MM*10 pieces, Φ4X100MM**10 pieces, Φ6X100MM*10 pieces, Φ8X100MM*10 pieces |
| Machine Dimension | About 1020W X 600D X 1900H mm |
| Computer Control | About 700W X 600D X 1300H mm |
Software Interface:
