UL94 Foam Horizontal Burning Tester Gas Pressure 0.1MPa 230V 50Hz

UL94 Foam Horizontal Burning Tester Gas Pressure 0.1MPa 230V 50Hz

    • UL94 Foam Horizontal Burning Tester Gas Pressure 0.1MPa 230V 50Hz
    • UL94 Foam Horizontal Burning Tester Gas Pressure 0.1MPa 230V 50Hz
    • UL94 Foam Horizontal Burning Tester Gas Pressure 0.1MPa 230V 50Hz
  • UL94 Foam Horizontal Burning Tester Gas Pressure 0.1MPa 230V 50Hz

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Calibration certificate(cost additional)
    Model Number: HVF-5A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Plywood
    Delivery Time: 30 days
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Blast Burner Standard: ISO10093:1998,inner Diameter Φ9.5±0.3mm,effective Length:100±10mm,with Wing Section Lamp Top:48±1×1.3 ±0.05mm Gas Pressure: 0.1MPa
    Gas Flow And Gas Category: 965±30ml/min, For The Methane Gas Purity Of 98% , It Can Also Use The Mixed Gas Or Propane Gas, Flow Meter Adjustment Flame Height: 38±2mm,blue Flame
    Lighting: Equip With Lighting In The Test Chamber, With Control Distance Between The Wing Top Of The Blast Burner To The Test Sample: 13±1mm
    High Light:

    flammability tester

    ,

    flame test equipment

    Foam Horizontal Burning Tester



    Products Introduction

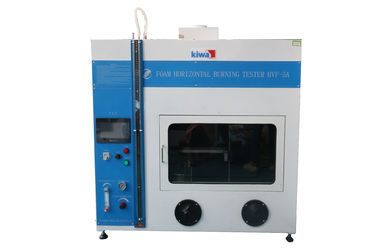

    This test apparatus is designed and manufactured according to the standard and related requirement of ISO9772-2001, UL94. This international standard specifies a small-scale laboratory screening procedure for comparing the relative burning characteristics of horizontally oriented, small cellular plastic specimens having a density less than 250kg/m' determined in accordance with ISO 845, when exposed to an ignition source.

    This product uses the integral intake ignition system. The combustion time delays 0.1S thus to make sure the sufficient time of gas burning.



    Technical Parameters





    ParametersModel HVF-5A
    Working voltage 230V/50Hz

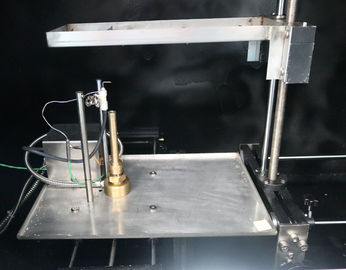

    Blast burner standard ISO10093:1998,inner diameter Φ9.5±0.3mm,effective length:100±10mm,with wing section lamp top:48±1×1.3 ±0.05mm
    Gas pressure 0.1MPa
    Gas flow and gas category 965±30ml/min, for the methane gas purity of 98% , it can also use the mixed gas or propane gas, flow meter adjustment
    Combustion / self extinguishing time 0-9999X0.1S
    Distance between the wing top of the blast burner to the test sample 13±1mm
    Flame height 38±2mm,blue flame

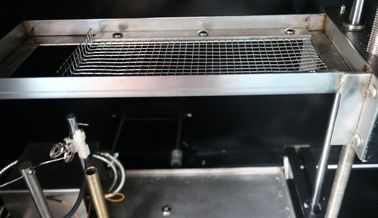

    Support net 215×75×13mm, grid : Φ0.8 made of stainless steel wire with length of the side of 6.4mm
    Lighting Equip with lighting in the test chamber, with control
    Test chamber and dimension >0.5 cube,black matte background,with exhaust fan,,dimension:1100*550*1200mm,130kg
