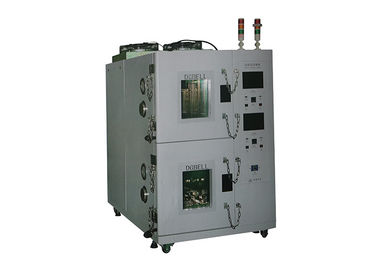

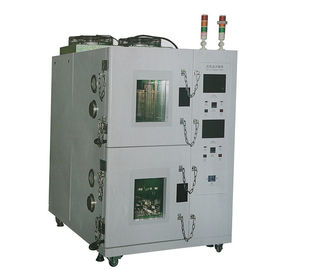

IEC60068-2 Battery Testing Equipment , PCL Control Double - Layered High Low Temperature Chamber

IEC60068-2 Battery Testing Equipment , PCL Control Double - Layered High Low Temperature Chamber

  • IEC60068-2 Battery Testing Equipment , PCL Control Double - Layered High Low Temperature Chamber
  • IEC60068-2 Battery Testing Equipment , PCL Control Double - Layered High Low Temperature Chamber
IEC60068-2 Battery Testing Equipment , PCL Control Double - Layered High Low Temperature Chamber
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HB6213
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Structural Patterm: The Test Chamber Is Designed As A Monolithic Upper And Lower Box Structure Temperature Fluctuation: ±0.3℃
Temperature Range: -40℃-150℃ Temperature Uniformity: ≤±2℃(at No Load,constand State)
Cooling Method: Air Cooling/water Cooling Heating Rate: Average 1-3℃/minute(non-linear No-load
High Light:

battery test chamber

,

battery discharge test equipment

Double-Layered High Low Temperature Chamber



IEC60068-2 Battery Testing Equipment , PCL Control Double - Layered High Low Temperature Chamber

Standard

IEC60068-2-1:2007 low temperature testing, IEC60068-2-2:2007 high temperature testing,GJB150.3-1986 high temperature testing, GJB150.4-1986 low temperature testing.



Application

It can accurately simulate complex natural environment such as low temperature, high temperature, high temperature and low temperature. It is suitable for electronics, electrical appliances, batteries, plastics, food, paper products, vehicles, metals,chemicals, building materials, research institutes, inspection and quarantine bureaus, universities. And other industry units for quality control testing.



Performance Parameters

Model HB6213 HB6213A
Single-layer inner box size W600 X D700 X H600MM W800 X D600 X H600MM
External Size W1300 X D1800 X H1950MM W1500 X D1950 X H1700MM
Structural patterm The test chamber is designed as a monolithic upper and lower box structure
Temperature fluctuation

±0.3℃



Heating rate Average 1-3℃/minute(non-linear no-load
Cooling rate Average 1.0℃/minute Full course(non-linear no-load
Temperature range -40℃-150℃
Temperature uniformity ≤±2℃(at no load,constand state)
Observation window W300 X H400MM,There-layer vacuum tempered glass
Test terminal 12 sets of terminals are connected to the test cabinet inside and outside of the chamber
Cooling method Air cooling/water cooling
compressor Tecumseh(Franch) Bock (Germany)
Controlling method Touch screen programmable control PLC, with USB interface, with RJ485.interfaca can be computer control, special network control software, convenient remonte monitoring, data acquisition
Internal chamber material SUS304#mirror stainless steel,1.0mm thick, sprayed with Teflon insulation
External chamber material Galvanized sheet. dusting, high temperature plastizing,1.2MM thick
Voltage AC380V 50HZ 12KWAC380V50HZ 14KW
Safety protection Automatic explosion-proof pressure relief device, explosion-proof chain,tri—color light alarm device, remote control, smoke exhaust device, fire extinguishing device,etc.
Extension function Development of communication protocol and supporting use of charge and discharge machine.

IEC60068-2 Battery Testing Equipment , PCL Control Double - Layered High Low Temperature Chamber 0
