Household Appliance IEC Test Equipment , IEC 60335-2-11 clause 20.101 Integrated Door Endurance Tester

Household Appliance IEC Test Equipment , IEC 60335-2-11 clause 20.101 Integrated Door Endurance Tester

  • Household Appliance IEC Test Equipment , IEC 60335-2-11 clause 20.101 Integrated Door Endurance Tester
  • Household Appliance IEC Test Equipment , IEC 60335-2-11 clause 20.101 Integrated Door Endurance Tester
  • Household Appliance IEC Test Equipment , IEC 60335-2-11 clause 20.101 Integrated Door Endurance Tester
  • Household Appliance IEC Test Equipment , IEC 60335-2-11 clause 20.101 Integrated Door Endurance Tester
Household Appliance IEC Test Equipment , IEC 60335-2-11 clause 20.101 Integrated Door Endurance Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate (cost additional)
Model Number: HJ0636A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Test Stations: 2 Stations Operation Interface: 10-inch Color LCD Touch Screen
Driving Mode: Servo Motor Door Open /close Angle: 0-130°,can Be Preset
Door Open /close Speed: 0-360°/s, Can Be Preset Control System: PLC Programmable Control
High Light:

iec testing equipment

,

iec tester

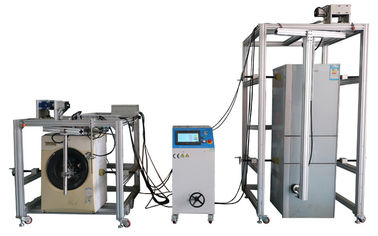

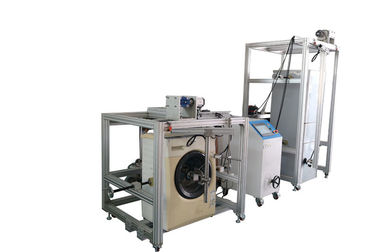

IEC 60335-2-11 clause 20.101 Integrated Door Endurance Tester For Durability And Structural Testing Of Household Appliance



Product Introduction



The integrated door endurance tester is special designed and manufactured as per IEC 60335-2-11 clause 20.101, IEC 60335-2-6 clause 22.108, IEC 60335-2-24 clause 22.112. Suitable for tumble washing machine / dryer door, pyrolytic self-cleaning ovens door, refrigerator door test. It is a special equipment For Durability And Structural Testing Of Small Appliance Doors.

The equipment adopts advanced PLC intelligent control system, touch screen humanized operation interface to make recording and display more accurate; with preset test times, on current detection, load voltage regulation and display, test speed, test stroke, open / close door pull force setting, pull force transient curve display, test data storage and query, fault alarm and other functions, can be analyzed by the data record whether the test sample is qualified or not. The whole machine is divided into tumble washing machine/dryer, pyrolytic self-cleaning oven test station, refrigerator test station, and beautiful appearance; stable performance and convenient operation. It is the first choice for large metrology institutions and laboratories.



Technical Parameters





NO. Item Parameters
1 Power supply AC230V±10%/50-60Hz
2 Test stations 2 stations, tumble washing machine/dryer, pyrolytic self-cleaning oven test station, refrigerator test station,
3 Operation interface 10-inch color LCD touch screen
4 Driving mode Servo motor
5 Control system PLC programmable control
6 Test times 0~999999 times, can be preset and displayed
7 Door open /close angle 0-130°,can be preset
8 Door open /close speed 0-360°/s, can be preset
9 Test project

1. washing machine door interlocks test

2. washing machine door endurance test

3. washing machine door structure test

4. oven door endurance test

5. refrigerator door endurance test

6. refrigerator open door test

10 Test environment Atmospheric pressure 80 ~ 106kpa; ambient temperature 5 ~ 40 ° C; relative humidity (20 ~ 80)% RH; use place: no vigorous shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation


Test Project:

1. IEC 60335-2-11 clause 20.101

Test equipment for locking means (similar to an endurance test), capable to energized and de-energized 6 000 times, six times a minute or at the rate imposed by the construction of the appliance if this is lower.

Applicable test sample on our test equipment: Tumble washing machine / dryer

2. IEC 60335-2-6 clause 22.108

Opening and closing of the door of Pyrolytic self-cleaning ovens test equipment, capable to opened at least 10 cm and is then closed by applying a force of 90 N to the handle. This operation is carried out 5 000 times. Every 1 000 cycles, the interlock system for the self-cleaning function is operated.

Applicable test sample on our test equipment: Pyrolytic self-cleaning ovens

3. IEC 60335-2-24 clause 22.112

Doors and lids of compartments in appliances test equipment

Applicable test sample on our test equipment: Refrigerator



Do you want more test for IEC60335 standard ?Click here IEC60335 series equipment list.pdf to get the equipment list .

Picture for reference

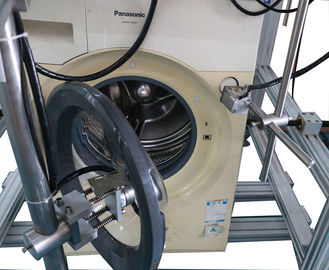

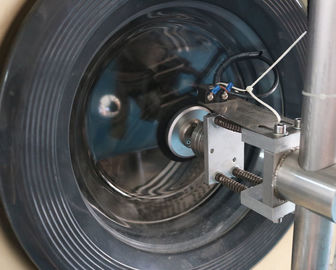

Household Appliance IEC Test Equipment , IEC 60335-2-11 clause 20.101 Integrated Door Endurance Tester 0

Household Appliance IEC Test Equipment , IEC 60335-2-11 clause 20.101 Integrated Door Endurance Tester 1
