|Place of Origin:||China|
|Certification:||Third party calibration certificate (cost additional)|
|Minimum Order Quantity:||1 Set|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||10 sets per month|
|Power:||3.0KW||IPX5 Spray Aperture:||Φ6.3mm|
|IPX6 Spray Aperture:||Φ12.5mm||IPX5 Spray Flow:||12.5±0.625 L/min|
|IPX6 Spray Flow:||100±5L/min||The Distance Of IPX56 Nozzle Mouth To Test Products:||2.5-3m|

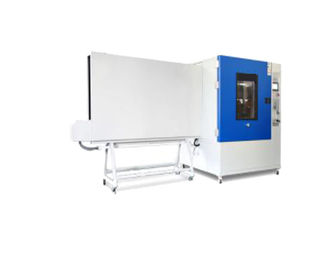

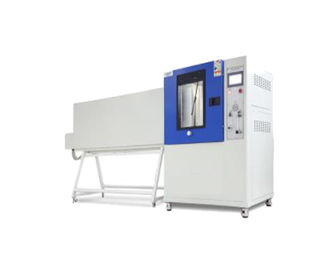

IPX56 Water Spray Test Chamber
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX5 and IPX6, IEC60884-1, IEC60335-1, IEC60598-1.
It is used for the testing of IPX5 and IPX6. Mainly used for electrical and electronic products, LED products, lamps, electrical cabinets, communications, digital equipment, transportation and other products to simulate outdoor rain weather conditions, and test the performance of the product is waterproof, to determine whether the corresponding level of protection, in order to product’s design, development and test use.
1. Inside water tank, cycling use of water. Configure advanced filters to filter debris in the water to avoid pinhole blockage.
2. Conform to the test distance for 2.5-3m.
3. Sample electrifying test
4. Connected WIFI operation.
5. The outer chamber of the equipment is made of high quality stainless steel, and the inner chamber and the turntable are all made of SUS304 stainless steel, which has high corrosion resistance.
6. 7-inch color touch screen + Panasonic PLC system, the sample can also be controlled by the system, and the remote control function is added.
7. Paint spraying, more beautiful.
8. Deliberately install the flow meter to make the test value clearer and more straightforward, easy to view the test value, and can be adjusted manually.
|Model||Internal dimension||Outer dimension||Power|

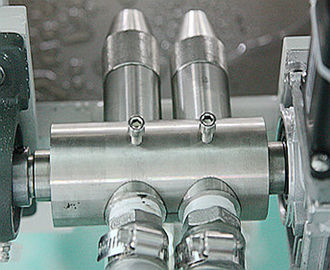

|IPX5 Spray aperture||Φ6.3mm|
|IPX6 Spray aperture||Φ12.5mm|
|IPX5 Spray Flow||12.5±0.625 L/min|
|IPX6 Spray Flow||100±5L/min|
|Flow control mode||Manual adjustment (rotor flow meter)|
|The distance of IPX56 nozzle mouth to test products||2.5-3m|
|Spray gun fixing method||Mechanical fixing (program setting, adjusting gun angle)|
|Rotary table||Diameter:Φ600mm. Load bearing≤50kg.|
|Input power||AC380V,50Hz (customizable)|
|Protector||Leakage protection, short circuit protection, water shortage protection|

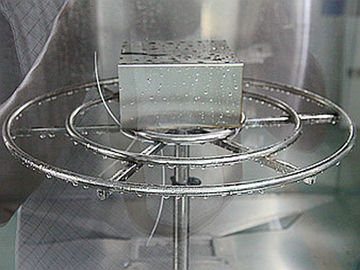

Picture for referrence:
