| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | CE, FCC, ROSH (cost additional) |
| Model Number: | HJ055 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 3 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5 sets / month |
| Leak Detection Rate: | 2g/year | Test Cycle: | 270 Pcs/hour |
|---|---|---|---|
| Vacuum Chamber: | 3 Set | Leak Detection Pressure: | 2.5 Mpa Downward Adjustable |
| Tracer Gas: | Helium | Helium Recovery Rate: | ≥95% |
| High Light: | helium leak detection,helium leak test equipment |
||

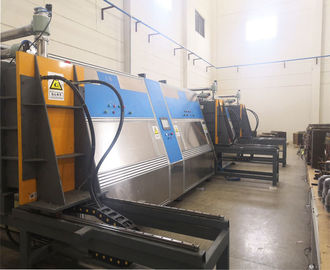

Vacuum Chamber Helium Leak Detection System for Air Conditioning Condenser Evaporator
The vacuum chamber helium leak detection system has three vacuum chambers, and three vacuum chambers work linked. The operator puts the parts into the vacuum chamber and connects them with the quick joints, and then simultaneously presses the two green buttons on the upper edge of the vacuum chamber. The chamber door is closed and the detection cycle begins automatically. Grating protectors are installed on both sides of the vacuum chamber door, and when the door is closed, it is ensured that there is no object in the door area that interferes with the movement of the door. Once one of the doors is closed, the detection cycle in this chamber begins.
Main Techinical Parameters:
|
Workpiece |
Air conditioning condenser evaporator |
|
Vacuum chamber size |
L1250mmX W480mmX D300mm |
|
Vacuum chambers |
3 pieces (2 pieces per chamber) |
|
Fixture |
6 sets |
|
Gas for gross leak dtection |
2.5 Mpa (downward adjustable) |
|
Tracer gas |
Helium |
|
Reject point |
2g/year |
|
Tracer gas pressure |
2.5 Mpa (downward adjustable) |
|
Production capacity |
270 pcs/hour |
|
Helium recovery |
Recovery rate ≥95% |
|
Vacuuming time |
50s |
|
Helium filling and detection time |
10s |
|
Helium recovery time |
8s |
|
Cyclic leak detection |
Yes |
|
Workpiece loading and unloading |
Manual |
|
Software language |
English |
