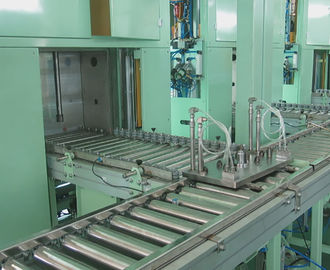

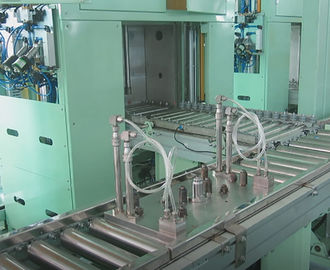

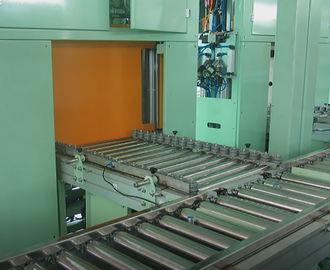

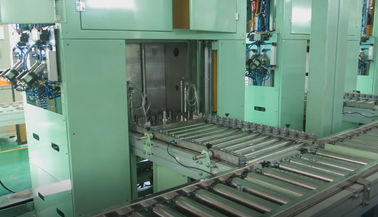

Fully Automatic Vacuum Chamber Helium Leak Testing Equipment for Automotive Air - conditioning Components

Fully Automatic Vacuum Chamber Helium Leak Testing Equipment for Automotive Air - conditioning Components

  • Fully Automatic Vacuum Chamber Helium Leak Testing Equipment for Automotive Air - conditioning Components
  • Fully Automatic Vacuum Chamber Helium Leak Testing Equipment for Automotive Air - conditioning Components
  • Fully Automatic Vacuum Chamber Helium Leak Testing Equipment for Automotive Air - conditioning Components
  • Fully Automatic Vacuum Chamber Helium Leak Testing Equipment for Automotive Air - conditioning Components
Fully Automatic Vacuum Chamber Helium Leak Testing Equipment for Automotive Air - conditioning Components
Product Details:
Place of Origin: Made in China
Brand Name: HongCe
Certification: CE, ROSH, FCC (Cost Additional)
Model Number: HHMZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Plywood
Delivery Time: 3 months
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3 months per set
Contact Now
Detailed Product Description
Helium Detector: Agilent/Leybold/Inficon Leak Detection Rate: 1.05E-6Pa.m3/sec
Test Cycle: 15s/pc Helium Recovery Rate: ≥95%
High Light:

helium leak detection

,

helium leak testing

Automatic Vacuum Chamber Helium Leak Detection Line for Automotive Air-conditioning Components



The system is highly automated. Except for loading/ unloading workpieces, other steps are automatically controlled and operated by the system, including:
automatically clamping and sealing workpieces , vacuuming workpieces, processing gross leakage detection, sorting OK /NG products after gross leakage detection, and helium filling into workpiece;
automatically transfer the workpiece into the vacuum chambers, processing fine leakage detection, and automatically discriminate the test results;
sorting OK /NG products after fine leakage detection;
automatically recover helium gas.
Therefore, only one operator is required for the entire process.


Basic technical indicators:



Test Workpiece Automotive / air conditioner components
Workpiece Fixture Customized according to client's workpiece, different fixtures to match different products
Operation Procedures

1. Load workpiece (manual)

2. Clamp, seal, vacuum, detect gross leak, sort OK/NG products after gross leakage detection, fill helium into workpiece (automatic)

3. Detect fine leakage (four stations, automatic), sort OK/NG workpiece after fine leakage detection (automatic)

4. Recover helium (automatic, optional), release workpiece fixture (automatic)

5. Unload workpiece (manual)

Vacuum Chambers Quantity can be customized, each chamber can detect one workpiece
Tracer Gas Helium
Pre-vacuum of Workpiece ≤500 Pa
Pressure for Fine Leak Test

1.5 MPa, downward adjustable

(or cusotmized according to client's testing requirements)

Pressure for Gross Leak Test

1.2~2.5 MPa

(or cusotmized according to client's testing requirements)

Reject Point

2g/a(R134a)equal to 1.05E-6Pa.m3/sec.

(or cusotmized according to client's testing requirements)

Test Cycle

15s/pc

(or cusotmized according to client's testing requirements)

Helium Recovery (Optional) Automatic recycling system, helium recovery rate≥95%





Basic functions:



The operator puts the workpiece on the fixture, and the system can complete the entire program of sealing, vacuuming, detecting gross leakage, sorting OK/NG workpiece after gross leakage detection, and filling helium into the workpiece outside the vacuum chamber; detecting fine leakage of the workpiece in the vacuum chamber, sorting OK/NG workpiece after fine leakage detection; recovering helium, unclamping workpiece. Production cycle is fast, and the leak detection accuracy is high.



Fully Automatic Vacuum Chamber Helium Leak Testing Equipment for Automotive Air - conditioning Components 0



Main configuration:



The main configuration of the equipment uses a variety of imported brand-name industrial components and can provide sufficient protection from the quality of the components to the overall reliability of the equipment. The materials of mechanical parts are made of excellent materials, and high-level processing technology ensures the reliability of the equipment.



Name Brand
Equipment Frame HongCe
Vacuum Chambers HongCe
Workpiece Fixtures HongCe
Vacuum Pump AGILENT/ LEYBOLD (OPTIONAL)
Vacuum Gauge AGILENT / LEYBOLD / INFICON (OPTIONAL)
Leak Detector AGILENT/ LEYBOLD / INFICON (OPTIONAL)
Electromagnetic Valve FESTO
Pressure Sensor DRUCK
Cylinder SMC
Helium recovery and boosting device HongCe
PLC OMRON
10″ Touch screen OMRON
Electrical components FUJI, SCHNEIDER,MITSUBISHI and etc.
Pipes and fittings Made in China
Equipment leak hole HongCe
System calibration leak hole HongCe
