IK Code Impact Testing Machine / Stainless Steel Pendulum Swinging Hammer Test Apparatus

IK Code Impact Testing Machine / Stainless Steel Pendulum Swinging Hammer Test Apparatus

    • IK Code Impact Testing Machine / Stainless Steel Pendulum Swinging Hammer Test Apparatus
    • IK Code Impact Testing Machine / Stainless Steel Pendulum Swinging Hammer Test Apparatus
    • IK Code Impact Testing Machine / Stainless Steel Pendulum Swinging Hammer Test Apparatus
    • IK Code Impact Testing Machine / Stainless Steel Pendulum Swinging Hammer Test Apparatus
    • IK Code Impact Testing Machine / Stainless Steel Pendulum Swinging Hammer Test Apparatus
  • IK Code Impact Testing Machine / Stainless Steel Pendulum Swinging Hammer Test Apparatus

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: calibration certificate
    Model Number: HC9921A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Packaging Details: plywood
    Delivery Time: 25 days
    Payment Terms: T/T
    Supply Ability: 10 set /month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Impact Element: 2,5,10,20,50J Optional
    Drop Height: Scale Display Release Mode: Mechanical
    Length: 1000mm Stroke: 200-1200mm



    IK Code Impact Testing Machine Stainless Steel Pendulum Swinging Hammer Test Apparatus



    Standard

    IEC60068-2-75 Environmental testing – Part 2: Tests – Test Eh: Hammer tests, IEC60068-2-63, IEC62262 Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code), IEC60439-5 Low-voltage switchgear and controlgear assemblies - Part 5:Particular requirements for assemblies for power distribution in public networks



    Application

    This device is suitable for mechanical impact strength test to electric cabinets and other sheet metal, shell of Non metal electric energy metering cabinet, substation cable switchboard and cable junction box



    Test sample

    The shell of electric energy metering cabinet, substation cable switchboard and cable junction box and similar equipment



    Feature

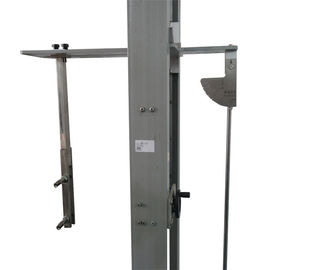

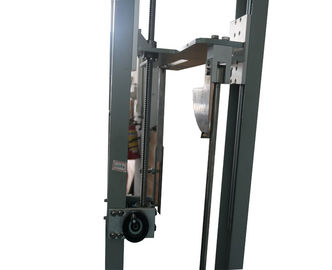

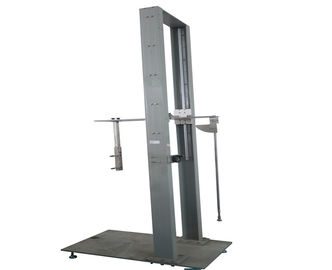

    Equipment using the car structure, can be moved left and right, forward and backward, the upper and lower impact point height adjustable, and the impact angle 0-90°adjustable. The device is a low energy pendulum impact device for 2J and above.



    Parameters

    Model HC9921A
    Pendulum Length: 1000mm; external diameter: 9mm; steel pipe wall thickness: 0.5mm. Composition of the equivalent mass with impact element
    Impact point Up and down adjustable, stroke 200-1200mm, height can be customized

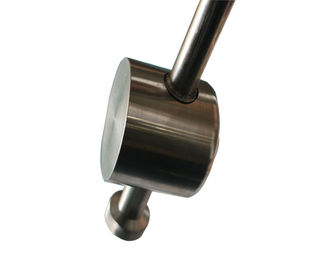

    Impact element 2,5,10,20J impact hammer

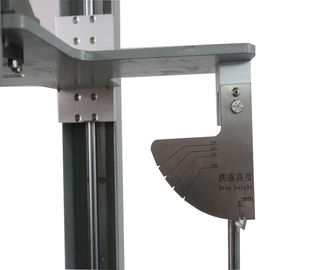

    Drop height Scale display
    Release mode Mechanical
    Dimension 950*550*2700mm



    Impact energy, equivalent mass and drop height table

    Energy/J 2 5 10 20 50
    Equivalent mass /kg 0.5 1.7 5 5 10
    Drop height ±1%mm 400 300 200 400 500

    Notes: 1. See note in IEC 60068-2-75 3.2.2

    1. In this part, the energy (J) is calculated taking the standard acceleration due to the earth’s gravity(g), rounded up to the nearest whole number, that is 10m/s².


    Co-ordinated characteristics of the striking elements

    Energy /J

    ≤1

    ±10%

    2

    ±5%

    5

    ±5%

    10

    ±5%

    20

    ±5%

    50

    ±5%

    Equivalent mass ±2%kg 0.25(0.2) 0.5 1.7 5 5 10
    Material Polyamide 1) Steel 2)
    R/mm 10 25 25 50 50 50
    D/mm 18.5(20) 35 60 80 100 125
    f/mm 6.2(10) 7 10 20 20 25
    r/mm - - 6 - 10 17
    l/mm To be adjusted to match the equivalent mass, see Annex A.

    1) 85≤HRR≤100, Rockwell hardness according to ISO2039-2.

    2) Fe490-2, according to ISO1052; Rockwell hardness according to ISO6508.

    NOTE- The values shown in the brackets for the equivalent mass and the diameter of the striking elements for the energy value equal to or less than 1 J are those in the current test Ef. The values currently in test Eg are also shown for these two parameters. For co-ordination purpose, the values in brackets will be deleted fives years from the publication of this standard.
