|Standard:||IEC60335-1 Clause 22.16 And Etc.||Test Speed:||30 Cycles / Min|
|Withdrawable Angle:||30~70°, Can Be Preset||Withdrawable Stroke:||Maximum 1000mm, Can Be Adjusted|
|Drive Mode:||Pneumatic||Control:||PLC Control System|

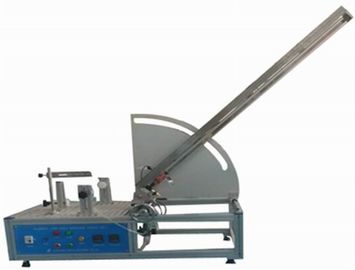

IEC60335 Testing Equipment Of Plc Control System 1000mm Adjustable Automatic Cord Reels Endurance Tester
Standard: Clause 22.16 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements.
Application: It is used to check the automatic cord reels shall be constructed so that they do not cause
– undue abrasion or damage to the sheath of the flexible cord;
– breakage of conductor strands;
– undue wear of contacts.
Test sample: Automatic cord reels of household appliances and similar electrical appliances.
Feature: The device adopts a multi-functional fixture, large work surface, can test cord reels up to 300cm, test speed (5-30 times / min) is adjustable, and it is suitable for most test electrical products.
|Gas Source||Compressed air 5 ~ 7kg / cm²|
|Test Speed||30 cycles / min (or at the maximum rate allowed by the construction of the cord reel if this is less)|
|Test Cycles||0~9999 times, the test device will stop working automatically when the preset test cycles are finished|
|Withdrawable Angle||30~70°, can be preset|
|Fixture||Quick clamping fixtures, easy for clamping the test sample|
|Withdrawable Stroke||Maximum 1000mm, can be adjusted|
Installation And Commissioning:
1. Turn on the power, preset test times and the interval time, the backward time is default (no need to preset). Regarding the setting method, please refer to the instrument parameter setting method.
2. Access to the gas source, open the intake switch, required pressure: > 0.6mpa.
Note: The reel speed will be reduced at a low pressure.
1. Adjust the position of the upper limit switch according to the required pull-out length of the cord. Start the device, and determine the pull-out length of the cord.
4. Shake the adjustment hand wheel to adjust the angle of the pull-out cord.
5. Start the device, and adjust the test speed to the desired test speed.
Adjust the test speed Adjust the air pressure Adjust the interval time

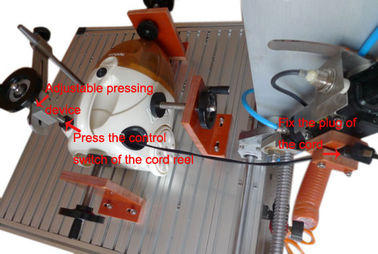

6. Install the test sample on the proper position:
Fix the plug of the cord, then adjust the hand wheel to make the axis of the reel in the vertical position on the lift rod .
If the sample reel has the control switch , should make the control switch in the open state.

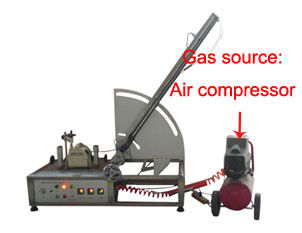

Figure: vacuum cleaner installation schematic
