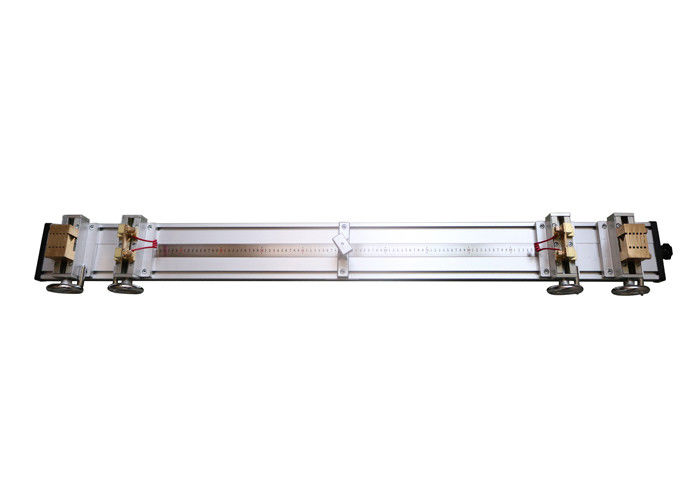

Universal Resistance Fixture 1mm² 630mm² Conductor Cable Testing Equipment

Universal Resistance Fixture 1mm²  630mm² Conductor Cable Testing Equipment
Universal Resistance Fixture 1mm²  630mm² Conductor Cable Testing Equipment Universal Resistance Fixture 1mm²  630mm² Conductor Cable Testing Equipment Universal Resistance Fixture 1mm²  630mm² Conductor Cable Testing Equipment Universal Resistance Fixture 1mm²  630mm² Conductor Cable Testing Equipment

Large Image :  Universal Resistance Fixture 1mm² 630mm² Conductor Cable Testing Equipment

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HDX1301

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 20 set per month
Detailed Product Description
Name: Universal Conductor Resistance Fixture Standard: IEC60245-1, IEC60245-2
Warranty: 1 Year Measuring Length: 100~1000mm
Test Sample: 1mm² ~ 630mm² Conductor Dimensions: 1530 × 210 × 150mm
Material: Aluminum Alloy Base Plate, Copper Clamp Function: Check The Electrical Resistance Of Conductors
High Light:

1mm² Conductor Cable Testing Equipment

,

IEC60245-2 Cable Testing Equipment

Cable Testing Equipment Universal Conductor Resistance Fixture 1mm² - 630mm² Conductor



Standard:IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements,IEC60245-2 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.

Standard description:

Electrical resistance of conductors

In order to check the electrical resistance of conductors, the resistance of each conductor shall be measured of a sample of cable of at least 1 m in length, and the length of each sample shall be measured.

Application:Applicable to the DC resistance measurement of variety of power cables and electrical equipment, wire and cable equipment specified in "Test methods for electrical properties of electric cables and wires" , it can also be used for DC resistance measurement of other conductor materials.

Test sample:1mm² ~ 630mm² Single or multi-stand conductor and core of power cable.

Feature:It adopts the fast clamp and withdraw structure by using positive and negative threaded rod, and the voltage and the current clamp are separated to improve the contact point of the sample. Aluminum alloy base plate, copper clamp.



Parameters:

The distance of clamping head between two voltage 100~1000mm
Test sample 1mm² ~ 630mm² conductor
Dimensions 1530 × 210 × 150mm
Adapting electrical bridge QJ84 double bridge, Optional.



Universal Resistance Fixture 1mm²  630mm² Conductor Cable Testing Equipment 0

Universal Resistance Fixture 1mm²  630mm² Conductor Cable Testing Equipment 1
