IPX8 Ingress Protection Test Equipment , Water Tightness Pressure Tester Pressure Adjustment Rang 0 ~ 6bar

IPX8 Ingress Protection Test Equipment , Water Tightness Pressure Tester Pressure Adjustment Rang 0 ~ 6bar

  • IPX8 Ingress Protection Test Equipment , Water Tightness Pressure Tester Pressure Adjustment Rang 0 ~ 6bar
  • IPX8 Ingress Protection Test Equipment , Water Tightness Pressure Tester Pressure Adjustment Rang 0 ~ 6bar
  • IPX8 Ingress Protection Test Equipment , Water Tightness Pressure Tester Pressure Adjustment Rang 0 ~ 6bar
  • IPX8 Ingress Protection Test Equipment , Water Tightness Pressure Tester Pressure Adjustment Rang 0 ~ 6bar
IPX8 Ingress Protection Test Equipment , Water Tightness Pressure Tester Pressure Adjustment Rang 0 ~ 6bar
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HH0806
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Pressure Vessel: Stainless Steel Tank, Diameter 0.8 Meter, Height 1 Meter Pressure Adjustment Range: 0 ~ 6bar (can Be Customized)
Pressure System: Stainless Steel Pump + Frequency Converter Pressure Gauge Accuracy: 0.25 Degree, Range: 10bar
Testing Time: 0-99min Maximum Limit Pressure: 6 Bar
High Light:

waterproof tester

,

material testing equipment

IEC60884-1 IPX8 Water Tightness Pressure Tester Pressure Adjustment Rang 0 ~ 6bar



Product Introduction



The IPX8 Water Tightness Pressure Tester is manufactured in accordance with the standard of Clause IEC60529 degree of protection provided by enclosures (IP Code) of the IPX8, IEC60884-1, IEC60335-1, IEC60598-1. It is used to assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.



Technical Parameter



Pressure vessel Stainless steel tank, diameter 0.8 meter, height 1 meter
Pressure adjustment range 0 ~ 6bar (can be customized)
Pressure system Stainless steel pump + frequency converter
Pressure gauge accuracy 0.25 degree, range: 10bar
Testing time 0-99min
Maximum limit pressure 6 bar
Pressure protection Pressure switch protection
Connect to the water supply equipment by 3/4 high pressure steel wire hose connection

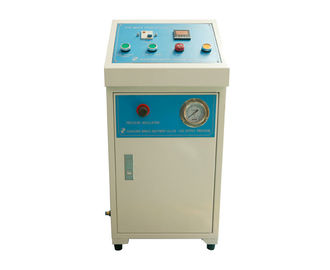

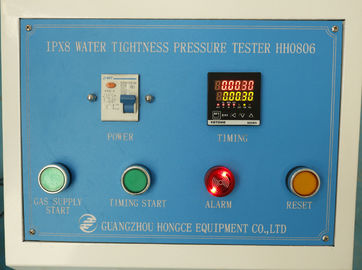

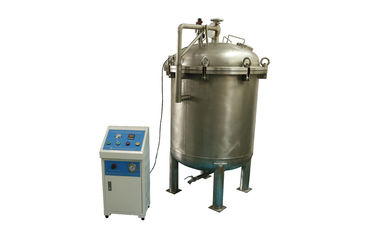

Picture for reference



IPX8 Ingress Protection Test Equipment , Water Tightness Pressure Tester Pressure Adjustment Rang 0 ~ 6bar 0
