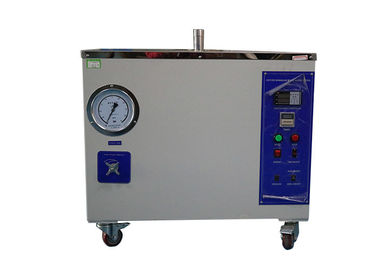

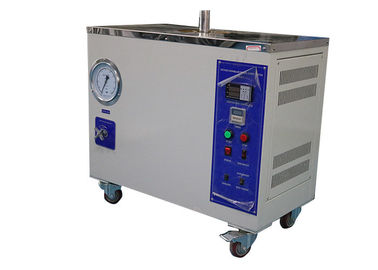

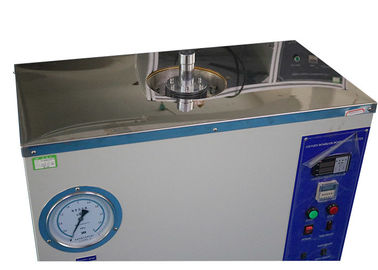

IEC60811 - 1 - 2 IEC Test Equipment / Oxygen Bomb Aging Tester For Wire And Cable

IEC60811 - 1 - 2 IEC Test Equipment / Oxygen Bomb Aging Tester For Wire And Cable

  • IEC60811 - 1 - 2  IEC Test Equipment / Oxygen Bomb Aging Tester For Wire And Cable
  • IEC60811 - 1 - 2  IEC Test Equipment / Oxygen Bomb Aging Tester For Wire And Cable
  • IEC60811 - 1 - 2  IEC Test Equipment / Oxygen Bomb Aging Tester For Wire And Cable
  • IEC60811 - 1 - 2  IEC Test Equipment / Oxygen Bomb Aging Tester For Wire And Cable
IEC60811 - 1 - 2  IEC Test Equipment / Oxygen Bomb Aging Tester For Wire And Cable
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: YLH-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 20 set per month
Contact Now
Detailed Product Description
Test Object: Wires, Cables, Rubber (plastic, Leather) Insulation Layer And Sheath, As Well As Other Polymer Materials. Standard: IEC 60335-1
Test: Aging Test Maximum Operating Pressure: 2.5MP
Secure Burst Pressure: 2.7~3.3MP Temperature-controlled Range: Room Temperature~200℃
Inside Chamber Dimensions: Diameter 123 × Height 337mm Outer Chamber Dimensions: 560mm × 420mm × 670mm
High Light:

iec tester

,

laboratory test equipment

IEC60811 - 1 - 2 Oxygen Bomb Aging Tester IEC Test Equipment For Wire And Cable



Standard:

  • IEC60811-1-2,
  • IEC60335-1,
  • IEC60335-2-17
  • IEC60245-2, etc.

Application:

This oxygen bomb aging tester, also called air bomb aging tester, is suitable for the aging test in the oxygen and compressed air to the wire and cable, rubber ( plastic, leather ) insulation and sheathing, as well as other polymer materials under the action of a predetermined pressure and temperature.





Feature:

The  oxygen bomb aging tester is with high accuracy temperature control, the operation is easy, and the appearance is attractive, and it composes of stainless steel tank container, electrical control cabinet.



Technical parameters:



Power supply AC 220V 50Hz
Maximum Operating Pressure 2.5MP
Secure Burst Pressure 2.7~3.3MP
Temperature-controlled range room temperature~200℃
Outer Chamber Dimensions 560mm × 420mm × 670mm
Inside Chamber Dimensions Diameter 123 × Height 337mm
Inside Chamber Volume 4000cm3
Heating Power 2.4KW
Temperature Alarm 0~200℃ Adjustable
Temperature deviation ±0.5℃
Temperature Control Intelligent control
Temperature Display Thermometer display
Material Inside chamber is made of stainless steel and outer chamber is made of electrostatic spraying steel plate



IEC60811 - 1 - 2  IEC Test Equipment / Oxygen Bomb Aging Tester For Wire And Cable 0
