IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit

IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit

  • IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
  • IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
  • IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
  • IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
  • IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
  • IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: DP-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
Rain Area: 1000mmX1000mm Dripping Aperture: ¢0.4mm
Water Dripping Height: 200mm Test Time: 10Min
Standard: IEC60529 IPX1 IPX2
High Light:

waterproof tester

,

material testing equipment

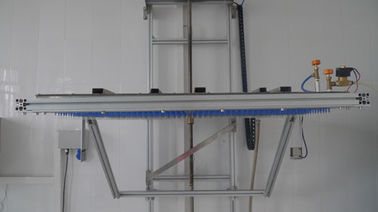

IEC60529 IPX1 IPX2 Drip Box Waterproof Testing Machine With Clean Water Filtration Unit


Product information:
This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX1 and IPX2.
The rise and fall of the drip box is controlled by the motor. It is equipped with the rotatable objective table whose rotating speed is 1r/min for IPX1 test;It is also equipped with 15°bevel for supporting sample for the IPX2 test. What’s more, this device is with the clean water filtration unit which can prevent pinhole from jamming.


Technical parameters:


No.

Item

Parameter

1

Power supply

Single phase AC220V,50Hz

2

Water supply

Water flow rate>10L/min±5% clean water without inclusion.
This device is equipped with clean water filtration unit

3

Water tank size

L*W*H=1100×800×350mm

4

Drop test area

L*W*H=1000×600mm,customizable

5

Drop height

200mm~1650mm adjustable

6

Dripping speed (water flow)

1+0.05  0mm/min or 3+0.05  0mm/min (Switchable)

7

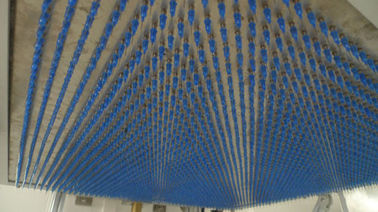

Water hole

Φ0.4mm

8

Distance between holes

20mm

9

Diameter of  rotary table

Φ600mm

10

Rotating speed of the rotary table

1r/min

11

Load bearing of the rotary table

≤150㎏electrical equipment (without rotary column)

12

15°bevel for supporting sample

15°bevel

13

Site requirements

Dedicated IP waterproof test room,The ground should be flat with illumination
10A waterproof leakage switch(or socket)used for equipment

14

The area

L*W*H=1500mm×1500mm×2650mm,the size can be customized by the customers’ need.
