BS EN IEC 60950 Flammability Testing Equipment / High Current Arcing Igintion Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS
Model Number: HC-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
Standard: BS EN 60950-1 Arc Strike Current: 33A±5%A
Arc Strike Speed: 40 Times/min Electrode Separation Velocity: 254±25㎜/S
High Light:

flammability chamber

,

flame test equipment

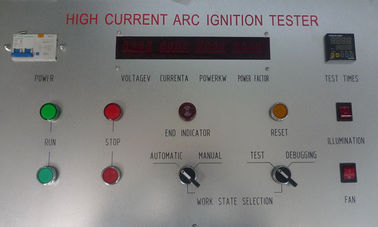

BS EN IEC 60950 Flammability Testing Equipment , High Current Arcing Ignition Tester





Product information:



The high current arcing igintion tester is used to measure and assess the arc resistance performance of insulator under the prescribed voltage.  It is applicable for arcing resistance test of electric and electronic products, household appliances and its materials.



The test machine is designed and manufactured according to the requirement of IEC 60950-1,BS EN 60950-1,BS 7002, UL746A,IEC60947.1, IEC730.1.



The  working principle is to simulate the electric leakage on the insulator which may cause among different polar of live parts or between live parts and grounded (earthed) metal parts.





Technical parameters:



  Working voltage

220V/50Hz,1KVA

Arc strike current

33A±5%A

Arc strike speed

40 times/min.

Electrode separation velocity

254±25㎜/S

Arc strike times

0-9999 can be preset

Electrode material

Static electrode—copper,dia.Ф3.5,top bevel angle 30°

Moving electrode—stainless steel,dia.Ф3.0, top cone angle60°

Electrode included angle

Form 45°with level,electrode head radius of curvature 0.1mm

Dropping liquid interval

30±5S,adjustable

Dropping liquid height

35±5mm

Dropping liquid delay

0.2S(magnetic valve opening time)

Dropping liquid size

45~50 drops/cm3

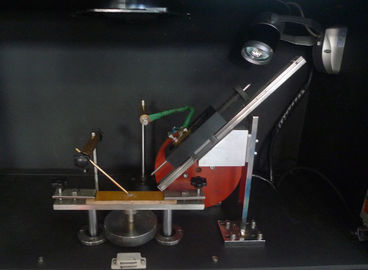

The heavy current arc ignition tester adopts dual electrodes. It has specific current (33A) and power factor (COSφ0.5), according to a certain arc strike speed (254mm/s) and repetition frequency (40 times/min), repeatedly arc strike to 200 times on the surface of specimen. The large current arc ignition performance (HAI) can be assessed according to whether the sample can be ignited. The smaller of the grade number, the more difficult for burning material.

BS EN IEC 60950 Flammability Testing Equipment / High Current Arcing Igintion Tester 0
