AC 220V 50Hz Plug Wire And Electrical Accessories Firmness Tester Single Working Station

AC 220V 50Hz Plug Wire And Electrical Accessories Firmness Tester Single Working Station

  • AC 220V 50Hz Plug Wire And Electrical Accessories Firmness Tester Single Working Station
  • AC 220V 50Hz Plug Wire And Electrical Accessories Firmness Tester Single Working Station
  • AC 220V 50Hz Plug Wire And Electrical Accessories Firmness Tester Single Working Station
  • AC 220V 50Hz Plug Wire And Electrical Accessories Firmness Tester Single Working Station
  • AC 220V 50Hz Plug Wire And Electrical Accessories Firmness Tester Single Working Station
AC 220V 50Hz Plug Wire And Electrical Accessories Firmness Tester Single Working Station
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HC9917
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 7-10 days
Payment Terms: T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Standard: IEC60884 、VDE 0620 Rate Of Testing: 60 Times / Min
Weights: 10N*1, 60N*1, 20N*2 Material: Stainless Steel
Operation: Button Operation
High Light:

electric socket tester

,

electrical plug tester

Single Working Station IEC60884 Clause 23.2 Plug Wire And Electrical Accessories Firmness Testing Device



Standard: IEC 60884-1 2013 clause 23.2 and figure 20, VDE 0620



Application: This device is used for test the firmness of the plug wire and electrical accessories.



Test sample: Non-rewirable plug and socket-outlet, rewirable plug and socket-outlet



Feature: In according with standard requirements. To test the firmness of the plug wire and electrical accessories.



Parameters:

  1. Power supply: AC 220V 50Hz
  2. Weights: 10N*1, 60N*1, 20N*2
  3. Rate of testing: 60 times / min
  4. Test times: 0-9999, preset. Default 100 times.

5. The pull force to the flexible cable:

The rated current of the flexible cable(A) The rated voltage of the flexible cable(V) The tensile force
2.5 50
2.5~16 <250 60
2.5~16 >250 80
>16 100

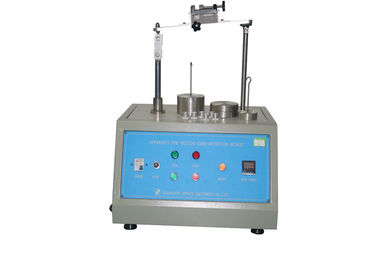

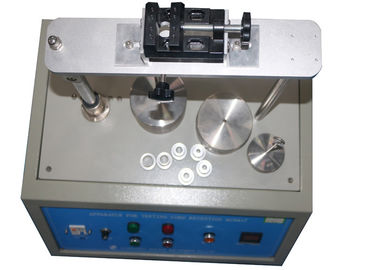

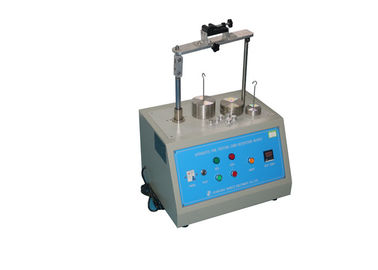

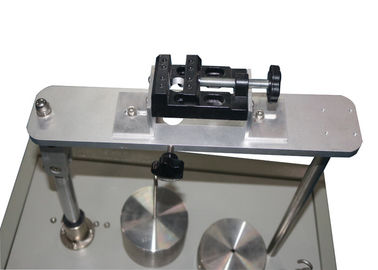

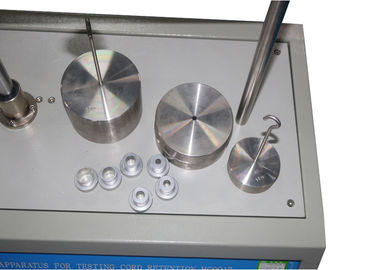

AC 220V 50Hz Plug Wire And Electrical Accessories Firmness Tester Single Working Station 0AC 220V 50Hz Plug Wire And Electrical Accessories Firmness Tester Single Working Station 1AC 220V 50Hz Plug Wire And Electrical Accessories Firmness Tester Single Working Station 2



AC 220V 50Hz Plug Wire And Electrical Accessories Firmness Tester Single Working Station 3
