Two Detection Stations Helium Leak Testing Equipment For Automotive Expansion Valve

Two Detection Stations Helium Leak Testing Equipment For Automotive Expansion Valve

  • Two Detection Stations Helium Leak Testing Equipment For Automotive Expansion Valve
  • Two Detection Stations Helium Leak Testing Equipment For Automotive Expansion Valve
Two Detection Stations Helium Leak Testing Equipment For Automotive Expansion Valve
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third party calibration certificate(cost additional)
Model Number: Hc
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 120 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Workpiece: Automotive Air - Conditioning Expansion Valve Reject Point: 1g / Year( R134a )
Tracer Gas: 10 % Helium + 90 % Nitrogen Cycle Time: 15s / Pc
Vaccum System: 2
High Light:

helium leak detection

,

helium leak test equipment

Two Detection Staons Helium Leak Testing Equipment for Automotive Expansion Valve



This equipment has 2 vacuum chambers. The operator puts the workpiece into the fixture in the vacuum chamber, then turn on the button and the fixture automatically seals the piecework. After the door of vacuum chamber is closed, the system can automatically complete the whole process like large leakage and strength detection, air exhaust, helium filling, Fine leak detection, helium removal and so on. High precision, easy operation and fast test cycle make our helium leak test system is widely adopted by pressure sensor core manufacturers.

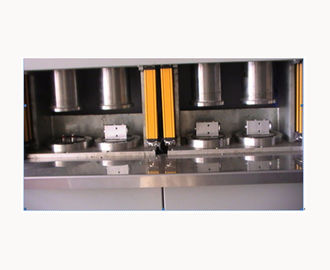

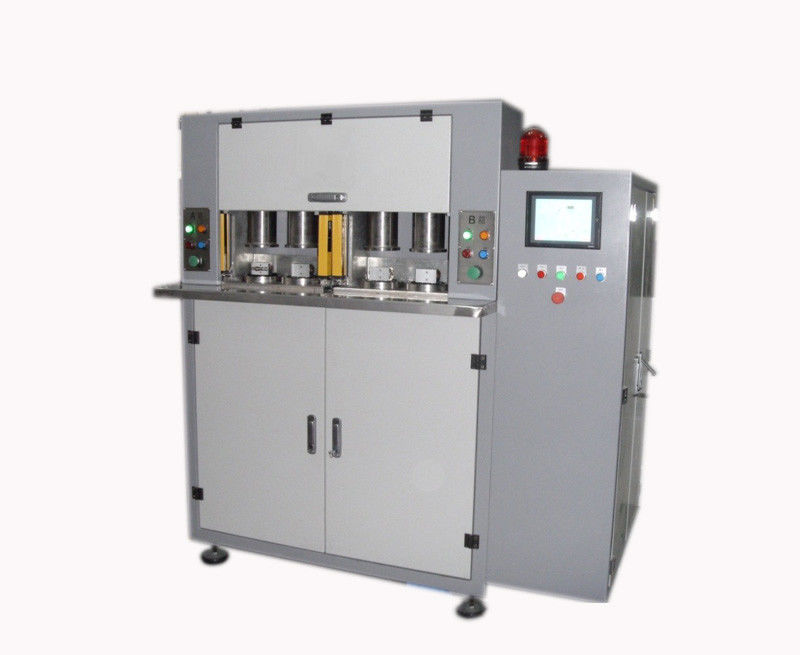

 Two Detection Stations Helium Leak Testing Equipment For Automotive Expansion Valve 0      Two Detection Stations Helium Leak Testing Equipment For Automotive Expansion Valve 1

Technical Specification



Workpiece

Automotive air - conditioning expansion valve , ( workpieces lower than 90x90x40mm),

Provide 4 set of detection fixture for one workpiece.

Tracer gas 10 % Helium + 90 % Nitrogen
Helium Pressure for Indicating Leakage 2.0Mpa
Reject point 1g / Year( R134a )
Cycle time 15s/pc ( load and unload time of the workpiece included )
Leak testing station Two Stations , each installs 2 workpieces



Equipment Application



According to the basic principle of helium leak detection, with helium as the tracer gas (instead of Freon), helium is filled into the workpiece in the vacuum chamber, and then the helium leak detector can accurately and quickly judge the leakage of the workpiece.



This system is suitable for air-tightness detection of automotive air-conditioning expansion valve. It ensures the airtightness of the product and avoid the leakage of harmful substances (refrigerant).
