| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | HC-TA1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Standard: | UL498 | Receptacles: | 6-15R, 6-20R |
|---|---|---|---|
| Used For: | Conductor Insertion | ||
| High Light: | portable appliance testing equipment,portable appliance tester |
||

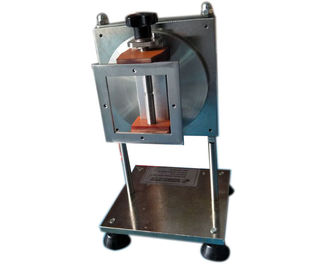

Terminal Abuse Tester
Product Introduction:
| This test device for terminal abuse test as per UL498 Cl. 129 figure 129.1~129.2. |
| The flush and self-contained receptacles having a 5-15R, 5-20R, 6-15R, or 6-20R configuration used for |
| the conductor insertion and retention test and the conductor push-in test are to be tested through this test apparatus. |

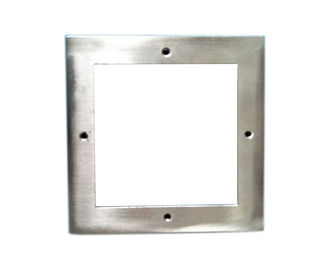

Picture for reference:

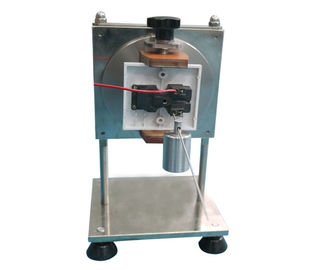

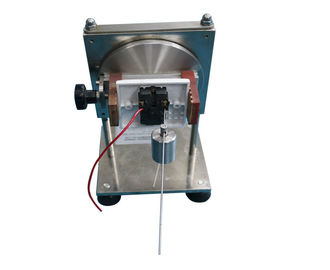

No. 14 AWG Test pin & weight
Operation:
Each receptacle is to be mounted in the test fixture shown in Figure 129.1 with its face in a vertical plane. The test pin shown in Figure 129.2 is then to be fully inserted into the ″Push-In″ terminal opening. An 8-ounce (0.23-kg) weight is to be gradually suspended from the test pin 6 inches (152 mm) from the plane of the terminal opening. The weight is to be applied for one minute, following which the weight is to be removed. The application of the weight is to be repeated with the receptacle rotated 90, 180 and 270 degrees for a total of four applications per receptacle.
