|Standard:||IEC 60227-2 Clause 3.3||Drop Height:||0.5m|
|Drop Mode:||Electromagnetic Release||Snatch Weight:||5N|
IEC 60227-2 Cable Testing Equipment,
Clause 3.3 Cable Testing Equipment

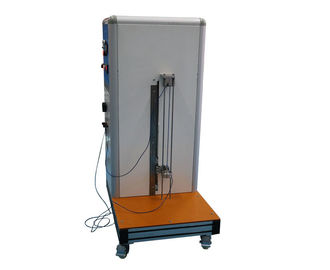

Snatch Tester for Polyvinyl Chloride Insulated Cables IEC 60227-2
The cord snatch tester is designed and manufactured according to IEC 60227-1 clause 220.127.116.11, IEC 60227-2 clause 3.3. It is used to testing the damage degree of flexible cord when applying a certain gravity pull. Test object of rated voltages up to and including 450/750V polyvinyl chloride insulated cables.

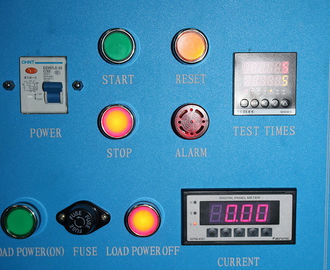

The test device is easy to operate, can preset the number of test times (up to 999999 times), the test speed can be adjusted, load current 0-1A stepless adjustable, and with the current conduction detection function. Tester will stop automatically when preset test times completed or detected conduction interrupt, record the tested times and alarm with sound. The equipment is manufactured according to the standard and the sample fixture matches the multiple samples. The utility model has the advantages of beautiful appearance, strong function and high reliability, and is an indispensable equipment for cable manufacturers and laboratory testing.
|Input Power||230V, 50Hz|
|Work station||1 station|
|Drop mode||Electromagnetic release, free fall|
|Electromagnetic chuck lift speed||Adjustable|
|Test times||0-999999, preset|
|Conduction detection||The test device is equipped with power supply terminals for the test samples, and it has a conduction detection function, if there is no current go through the test sample, the indicator light turns on, alarm occurs and the test stops, records the real-time test times|
Two Test Modes:
