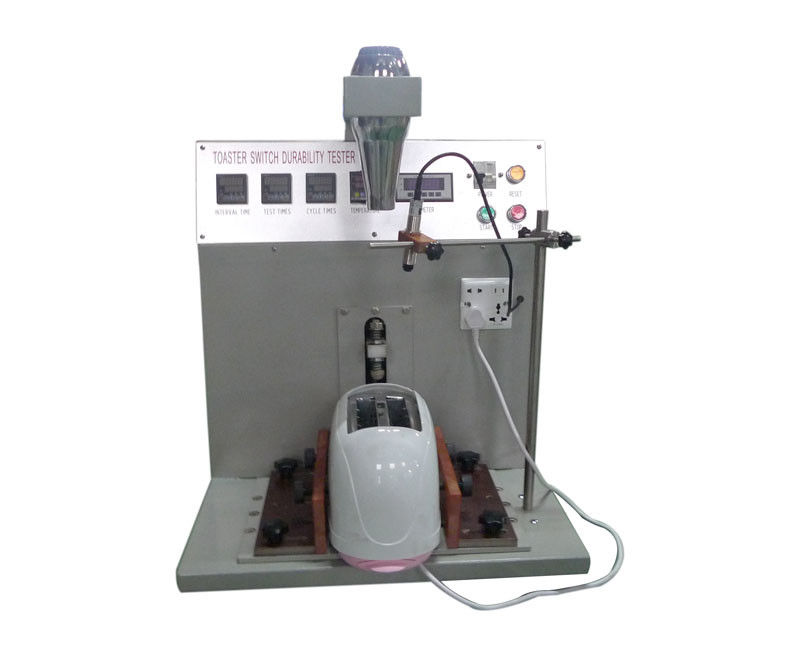

IEC 60335-2-9 Toaster Switch Endurance Tester With Infrared Thermometer

IEC 60335-2-9 Toaster Switch Endurance Tester With Infrared Thermometer

  • IEC 60335-2-9 Toaster Switch Endurance Tester With Infrared Thermometer
  • IEC 60335-2-9 Toaster Switch Endurance Tester With Infrared Thermometer
  • IEC 60335-2-9 Toaster Switch Endurance Tester With Infrared Thermometer
IEC 60335-2-9 Toaster Switch Endurance Tester With Infrared Thermometer
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HJ0631
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 20 set per month
Contact Now
Detailed Product Description
Test Object: Toaster Switches Standard: IEC 60335-2-9
Power Supply: 220V AC/ 50Hz Test Cycles: 1~999999
Cooling Fan Power: 100W Temperature Measuring Device: Infrared Thermometer (optional)
Drive Mode: Motor-driven Dimension: L500mm × W620mm × H800mm
High Light:

electrical appliance tester

,

portable appliance testing equipment

Toaster Switch Endurance Tester HJ0631





Description:

This device is used to check the power-on and off endurance that the toasters are operated at rated power supply and under normal operation.

Equipped with vertical and horizontal keys, with spring to do the buffer to protect the sample keys.

With the device which can detect the test sample’s current automatically; current detection upper and lower limits is adjustable, and with a light for status indication;

The baking and cooling actions can automatically repeat starting according preset parameters; with count and temperature discrimination functions; the baking cycles, test cycles, the interval time (0 ~ 99min) can be preset.

Confirm to IEC60335-2-9 clause 19.101 of Household and similar electrical appliances – Safety: Part 2-9: Particular requirements for gills, toasters and similar portable cooking appliances.



Technical parameters:

Test object Toaster switches
Reference standard IEC 60335-2-9
Test switch endurance test
Power supply 220V AC/ 50Hz
Test Cycles 1~999999
Cooling Fan Power 100W
Temperature Measuring Device infrared thermometer (optional)
Drive Mode Motor-driven
Protection Equipped with vertical and horizontal keys, with spring to do the buffer to protect the sample keys
Detection With the device which can detect the test sample’s current automatically; current detection upper and lower limits is adjustable, and with a light for status indication;
Function The baking and cooling actions can automatically repeat starting according preset parameters; with count and temperature discrimination functions; the baking cycles, test cycles, the interval time (0 ~ 99min) can be preset.
Dimensions L500mm × W620mm × H800mm, 100kg



Test sample: Toaster switch



Feature:

The toaster was forced to be cooled to room temperature after each operation, and forced cooling action is performed once per every 6 bakes. This is repeated 500 times. It is with a infrared thermometer.

IEC 60335-2-9 Toaster Switch Endurance Tester With Infrared Thermometer 0
