| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HJ0601 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 set per month |
| Test Object: | Household And Similar Electrical Appliances | Standard: | IEC 60335-1 |
|---|---|---|---|
| Test: | Temperature Measurement | Size: | 600X600X1000mm(can Be Customized) |
| Thermocouple: | OMEGA Thermocouple K Type | Copper Sheet: | Diameter 15mm, Thickness Of 1mm |
| Measuring Points: | 20, 32, 48, 64(can Be Customized) | Plywood: | Thickness Of 20mm |
| High Light: | electrical appliance tester,portable appliance testing equipment |
||

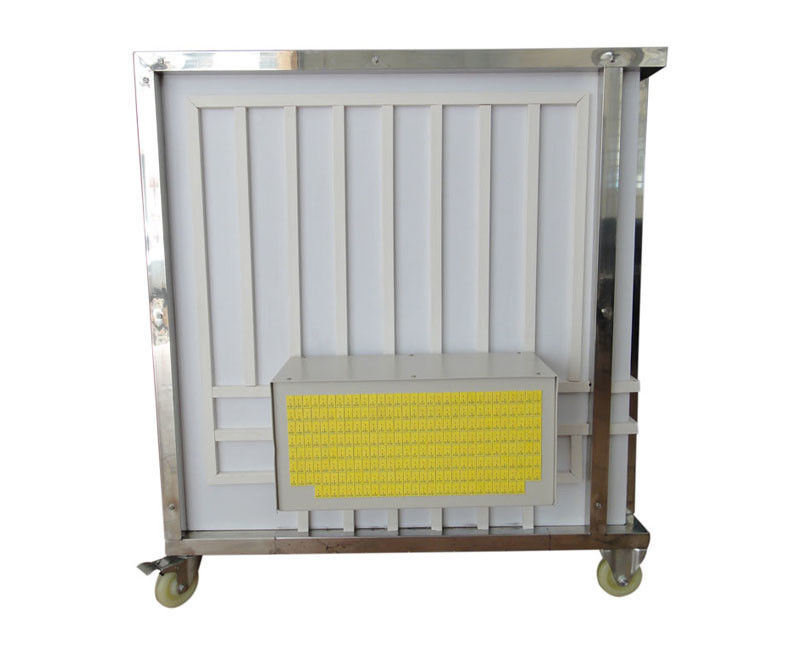

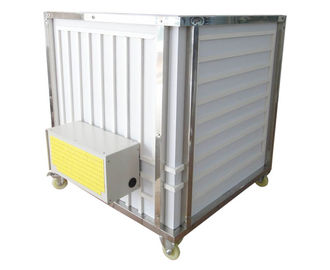

Temperature Measurement Corner HJ0601
Description:
This device is Used for the temperature rise test of all kinds of motor-operated appliances and electrical products to meet the requirements of the environmental conditions.
Its built with 20mm thickness plywood, measuring temperature with diameter 5mm thickness 1mm copper sheets and K type OMEGA thermocouples. To be used with a temperature recorder.
Confirm to IEC60335-1 clause 11 Household and similar electrical appliances-safety-Part 1:General requirements.
Technical parameters:
| Test object | Household and similar electrical appliances |
| Reference standard | IEC 60335-1 |
| Test | temperature measurement |
| Size |
600X600X1000mm, 800X800X1000mm, 1000x1000x1200mm(can be customized) |
| Thermocouple | original OMEGA thermocouple K type with diameter less than 0.3mm |

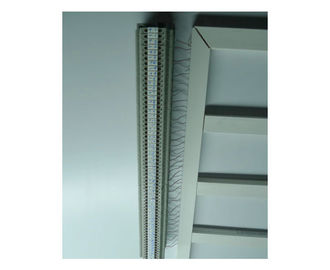

| The thermocouple arrangement |
All leads on a connection line(optionally equipped with thermocouple plug and socket) |
| Copper sheet |
diameter of 15mm and the thickness of 1mm |
| Measuring points | 20, 32, 48, 64(can be customized) |
| The arrangement of temperature measuring points | 100*100mm or 76*76mm square(can be customized) |
| Plywood | The thickness is 20mm and the front side is painted with Berlin black and the reverse side is with gray film back |
| The movable part | there are 4 removable wheels installed on the bottom of the device |

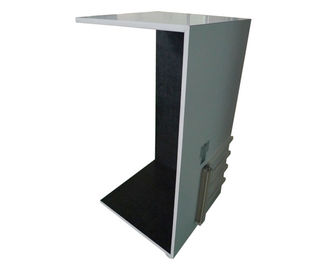

| Structure | 1 bottom plate, 2 side plates, 1 top plate |
| Optional | Temperature recorder |
Test sample: Household appliances, such as microwave ovens, refrigerators.
Feature: Can make different distribution specifications, the number of temperature measurement points and outline dimension according to the actual test samples.
