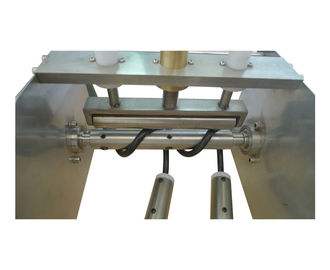

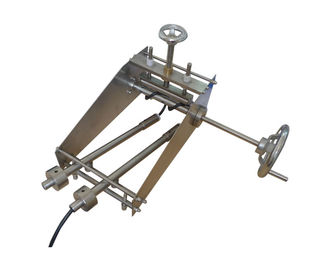

IEC 60811-1-4 Cold Bending Test Machine For Insulating / Sheathing Materials

    • IEC 60811-1-4 Cold Bending Test Machine For Insulating / Sheathing Materials
    • IEC 60811-1-4 Cold Bending Test Machine For Insulating / Sheathing Materials
  • IEC 60811-1-4 Cold Bending Test Machine For Insulating / Sheathing Materials

    Product Details:

    Place of Origin: China
    Brand Name: HONGCE
    Certification: Third part calibration certificate(cost additional)
    Model Number: HDX1307

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood
    Delivery Time: 20 working days
    Payment Terms: T/T
    Supply Ability: 20 set per month
    Contact Now
    Detailed Product Description
    Test Object: Insulating And Sheathing Materials Of Cable Standard: IEC60811-1-4
    Test: Cold Bending Test Stations: 2
    Diameter Of Samples: Diameter 2.5mm ~12.5mm The Number Of Turns: 2~10 Turns
    Mandrel: 13 Piece Rotation Speed: 5S/ Turn

    Cold Bending Test Machine HDX1307



    Technical parameters:

    Station:2

    Diameter of samples:Φ2.5mm ~12.5mm

    The number of turns:2 to 10 turns, and the number of turns shall be as specified in the following table:

    Overall diameter (d) of the test piece (mm) Number of turns
    D≤2.5 10
    2.5﹤d≤4.5 6
    4.5﹤d≤6.5 4
    6.5﹤d≤8.5 3
    8.5﹤d 2

    Test condition: The diameter of the mandrel shall be between 4 and 5 times the diameter of the test piece. Standard equip with the mandrel :Ф4, Ф5, Ф6, Ф7, Ф8, Ф10, Ф12, Ф14, Ф16, Ф18, Ф20, Ф24, Ф37.5mm

    Rotation speed: 5S/ turn, manual control

    Diameter of pipe: Ф3.5, Ф6, Ф10, Ф12, Ф16mm, each of two pieces



    Description:

    This device is intended in general for cables with an overall diameter up to and including 12.5 mm, or for flat cables, a major axis dimension up to and including 20 mm.

    According to the standard IEC60811-1-4 clause 8.1 and 8.2, common test methods for insulating and sheathing materials of electric and optical cables-part 1-4:Methods for general application-Test at low temperature.



    Test sample: Cables with an overall diameter up to and including 12.5 mm, or for flat cables, a major axis dimension up to and including 20 mm.



    Feature: Made of stainless steel, 2 stations, equip with the extended handle which can be connected to the outside of the low temperature chamber.

    IEC 60811-1-4 Cold Bending Test Machine For Insulating / Sheathing Materials
