0-30° Electrical Appliance Tester for IEC60335-1 Clause 20.1 Stability and Mechanical Hazards Inclined Plane

0-30° Electrical Appliance Tester for IEC60335-1 Clause 20.1 Stability and Mechanical Hazards Inclined Plane
0-30° Electrical Appliance Tester for IEC60335-1 Clause 20.1 Stability and Mechanical Hazards Inclined Plane 0-30° Electrical Appliance Tester for IEC60335-1 Clause 20.1 Stability and Mechanical Hazards Inclined Plane 0-30° Electrical Appliance Tester for IEC60335-1 Clause 20.1 Stability and Mechanical Hazards Inclined Plane 0-30° Electrical Appliance Tester for IEC60335-1 Clause 20.1 Stability and Mechanical Hazards Inclined Plane

Large Image :  0-30° Electrical Appliance Tester for IEC60335-1 Clause 20.1 Stability and Mechanical Hazards Inclined Plane

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HJ0603

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Standard export packing
Delivery Time: 15 days
Payment Terms: T/T, PayPal
Supply Ability: 10 Sets per month
Detailed Product Description
Standard: Clause 20.1 Of IEC 60335-1 Surface Diameter: 600mm/ 800mm/1000mm/800*800mm
Surface Material: High-quality Spray Steel Plate Angle Range: 0-30°
High Light:

electrical appliance tester

,

portable appliance tester

IEC60335-1 Clause 20.1 Stability and Mechanical Hazards Inclined Plane Tester





Standard: Clause 20.1 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements.



Application: It is used to test the stability of an apparatus that requires a surface in order to work.



Test sample: Household appliances, such as refrigerators, washing machines, air conditioners, other household appliances and similar electrical appliances and etc.

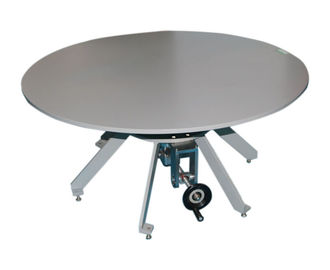

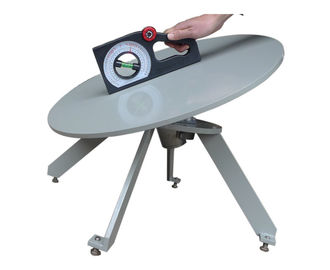

Feature: The device consists of a surface and an angle adjusting device. Test sample is placed on the surface, then check the test sample’s mechanical stability by Inclining the surface at an angle. Manual operation version and electrical motor drive version are optional; the electrical motor drive version can achieve 1r/min rotating rate.





Parameters:

Model

Surface

Diameter

Surface

Material

Angle

Range

Load Capacity Rotation Method Rotation Speed Remark
HJ0603 600mm High-quality spray steel plate 0-30° 50kg Manual -/1r/min Round table
HJ0603A/Z 800mm High-quality spray steel plate 0-30° 80kg

Manual /

Electrical

-/1r/min Round table
HJ0603B/Z 1000mm High-quality spray steel plate 0-30° 120kg

Manual /

Electrical

-/1r/min Round table

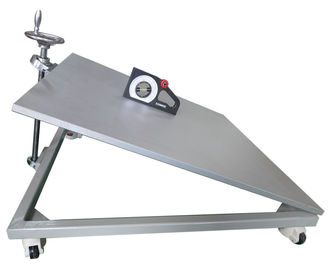

HJ0603C 800*800mm Aluminum plate 0-15° 80kg Manual - Rectangle table

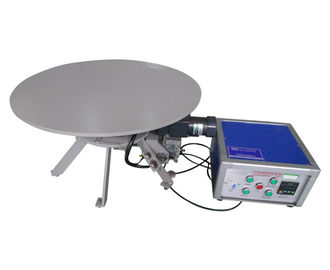

Z represents the version with automatic rotation function driven by the electrical motor



0-30° Electrical Appliance Tester for IEC60335-1 Clause 20.1 Stability and Mechanical Hazards Inclined Plane 00-30° Electrical Appliance Tester for IEC60335-1 Clause 20.1 Stability and Mechanical Hazards Inclined Plane 1
