Termination Retention Electrical Safety Test Equipment With PLC Touch Screen

Termination Retention Electrical Safety Test Equipment With PLC Touch Screen

  • Termination Retention Electrical Safety Test Equipment With PLC Touch Screen
  • Termination Retention Electrical Safety Test Equipment With PLC Touch Screen
  • Termination Retention Electrical Safety Test Equipment With PLC Touch Screen
Termination Retention Electrical Safety Test Equipment With PLC Touch Screen
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: PST-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 20 set per month
Contact Now
Detailed Product Description
Test Object: Termination Standard: IEC 60068-2-21
Test: Test Ua1, Test Ub And Test Uc Test Ua1: Tensile Test
Test Ub: Bending Test Test Uc: Torsion Test
Control: MITSUBISHI PLC + Touchscreen
High Light:

iec testing equipment

,

iec tester

Termination Retention Tester PST-2





Product information:
This tester is design and manufacturer according to standards GB2693-2011 / IEC60384-1 Clause 4.13.1, 4.13.2, 4.13.3 and GB/T 2423.60 2008 / IEC 60068-2-21 2006 Clause 3 test Ua1, clause 5 test Ub and clause 6 test Uc.
This tester can use to perform 3 different tests of termination: tensile test, bending test and torsion test.
Tensile test force applied with corresponding weights, special design with a motor drive ensure the force progressively, without any shock. Force maintain time can preset, when set time reach, tester release the weight.
Bending test can preset bending angle, bending direction, bending rate and bending times. The operation is convenient.
Torsion test allowing 0-360°full direction torsion, can preset test times, test angle.
Special design and brand components make this tester a good look and easy operate comprehensive test equipment.


Technical parameters:
1. Power supply: AC 220V 50Hz
2. Control: MITSUBISHI PLC + Touchscreen
3. Tensile test: weights to apply vertical tensile force progressively, without shock
4. Weights: 0.5N, 1N, 1.25N, 2.5N, 5N, 10N, 20N, 40N, error within 1%
5. Tensile maintain time: 0-999s, preset
6. Bending test: test one termination each time
7. Bending angle: 0-90°, adjustable,
8. Bending direction: one-side or two-sides
9. Bending test rate: 1-60 times per min
10. Bending times: 1-9999, preset
11. Torsion test: 1-360°, adjustable
12. Torsion times: 1-9999, preset

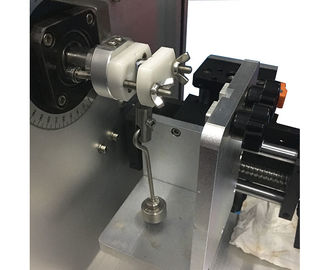

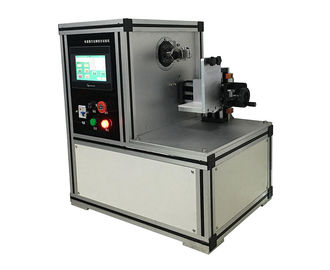

Termination Retention Electrical Safety Test Equipment With PLC Touch Screen 0

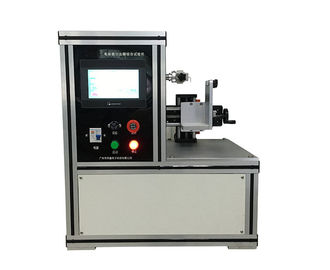

Termination Retention Electrical Safety Test Equipment With PLC Touch Screen 1
