Household Appliances Portable Appliance Testing Equipment 0 - 360° Flexing Angle

Household Appliances Portable Appliance Testing Equipment 0 - 360° Flexing Angle

    • Household Appliances Portable Appliance Testing Equipment 0 - 360° Flexing Angle
    • Household Appliances Portable Appliance Testing Equipment 0 - 360° Flexing Angle
    • Household Appliances Portable Appliance Testing Equipment 0 - 360° Flexing Angle
    • Household Appliances Portable Appliance Testing Equipment 0 - 360° Flexing Angle
    • Household Appliances Portable Appliance Testing Equipment 0 - 360° Flexing Angle
  • Household Appliances Portable Appliance Testing Equipment 0 - 360° Flexing Angle

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: CNAS
    Model Number: PCF-1A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 1~ USD9999 per set
    Packaging Details: Plywood
    Delivery Time: 30 days
    Payment Terms: T/T, L/C,Western Union
    Supply Ability: 1~99 set per month
    Detailed Product Description
    Standard: IEC 60335-1 Clause 24.15 Test Samples: Household Appliances
    Flexing Angle: 0-360° Control: Mitsubishi PLC



    IEC 60335-1Figure 8 Supply Cord Against Excessive Flexing Testing Apparatus





    Product Introduction:

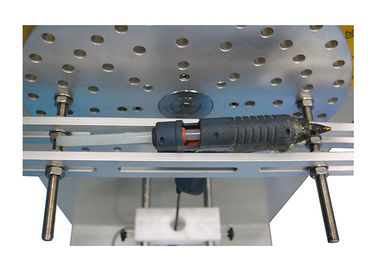

    The supply cord flexibility performance tester is special designed and manufactured according to clause 23.3 and 25.14 of IEC60335-1, GB4706-1, IEC60335-2-14, GB4706-30 and etc., it is used to check the power cord flexing (bending) resistance performance of the small household appliances (such as Coffee pot / electric iron), also applicable for power cord flexing endurance tester of plugs and sockets.
    The test device adopts to PLC electrical control, 7-inch color touch screen intelligent operation system; servo motor controlling the test angle, high precision digital instrument, high performance digital frequency conversion, precise speed regulation, six number memory timer, multifunctional combined clamps, center gauge of rotation, bending angle adjustable, 4kw output power. Test times (maximum of 999999 times), test speed, and test angles can be preset; it has electric current detection function. This device can meet the test requirements of most of small household electrical appliances, the applicable range is widely.



    Technical Parameters:



    Item Name Parameters
    Flexing angle 0-360°. Can be preset
    Flexing speed 0~60 rpm, can be preset
    Test times 0~999999 times, can be preset and displayed
    Power 230V 50Hz
    Control PLC programmable control
    Drive Servo motor
    Operation Touch screen intelligent operation
    Configuration 0~4KW transformer, test current can be displayed
    Bearing Max. 30kg
    Test station 1 station
    Specimen fixture Universal fixtures, with center gage of rotation
    Load weights 5N*1,10N*1
    Standards IEC 60335-1, IEC 60335-2-14, GB4706.1, GB2099



    Standard Figure:

    Household Appliances Portable Appliance Testing Equipment 0 - 360° Flexing Angle





    HongCe IEC 60335 series of test equipment  covers leakage current, heating, overload, durability, abnormal operation, stability and mechanical hazards, mechanical strength, structure, wire connection and terminals, heat resistance test equipment for household and commercial usage electrical appliances. The applicable test sample include irons, kettles, vacuum cleaners, water kettles, refrigerator, toasters, skin and hair care appliances, microwave ovens, washing machines, dishwashers, electric stoves, air conditioning, etc. The main test equipment are including test corner, inclined plane, scratch-resistant tester, power cord flexibility test machine, power cord pull and torsion test machine, kettle insertion withdraw endurance tester, electric iron drop tester, energy efficiency standards test pot, automatic cord reels endurance tester, care appliance bending tester, carrying-hose bending / wear-resistant test equipment, microwave oven endurance door tester and etc.



    Comply with Standards:


    IEC 60335-1 / GB 4706.1 Household and similar electrical appliances – Safety – Part 1: General requirements.
    IEC 60335-2-3~ IEC 60335-2-103 / GB 4706.2~98 Household and similar electrical appliances – Safety – Part 2-3~2-103 Particular requirements for XX and similar appliances.









    Household Appliances Portable Appliance Testing Equipment 0 - 360° Flexing Angle
