IEC 60529 IPX9 IP Code 9K Ingress Protection IEC Test Equipment for Auto Parts

IEC 60529 IPX9 IP Code 9K Ingress Protection IEC Test Equipment for Auto Parts

    • IEC 60529 IPX9 IP Code 9K Ingress Protection IEC Test Equipment for Auto Parts
    • IEC 60529 IPX9 IP Code 9K Ingress Protection IEC Test Equipment for Auto Parts
    • IEC 60529 IPX9 IP Code 9K Ingress Protection IEC Test Equipment for Auto Parts
    • IEC 60529 IPX9 IP Code 9K Ingress Protection IEC Test Equipment for Auto Parts
  • IEC 60529 IPX9 IP Code 9K Ingress Protection IEC Test Equipment for Auto Parts

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: CNAS
    Model Number: IPX9K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Plywod
    Delivery Time: 30 days
    Payment Terms: T/T, L/C,Western Union
    Supply Ability: 10 sets/month
    Detailed Product Description
    Standard: 14.2.9 Of EN60529:1992+A2:2013 Working Volume: 1m³
    Nozzle Number: 4 (0°,30°,60°,90°) Nozzle Rotating Speed: 23 RPM
    Test Water Temperature: 80±5 ℃

    IPX9 Ingress Waterproof Testing Equipment IPX9K Test Chmber For Electrical And Auto Parts



    Products Introduction:



    The test apparatus is designed and manufactured according to clause 14.2.9 of IEC EN 60529 2013 Edition 2.2 , DIN40050-9, ISO 20653-2006, ISO30653-2006, clause 4.9.2of QC/T 417.1-200, clause 6.2.7 and 6.2.8 of TOYOTA ENGINEERING STANDARD TSC1000G. It is applicable for waterproof testing of the electrical and auto parts under high temperature and high pressure.

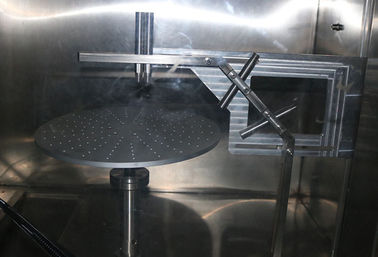

    The equipment is consists of heating water tank, high pressure plunger pump, high pressure solenoid valve, fan nozzle, turntable and so on. Firstly, heat the water in the water storage tank to required temperature, secondly, mount the sample on the turntable, adjust the position of the nozzle, thirdly, close the protective door of the test equipment, set all test required parameters, finally, start the test. The four nozzles spray for 30 seconds in order during the test.



    Technical parameters:



    Item Parameters
    Working Volume 1m³
    Test Water Temperature 80±5 ℃
    Spray Pressure 8Mpa~10Mpa (adjustable)
    Spray Flow 14L/min~16L/min (change according to pressure)
    Nozzle Number 4 (0°,30°,60°,90°)
    Nozzle Size According to standard graphics, meet standards
    Nozzle rotating speed 23 RPM
    Spray Distance 100~150mm (adjustable)
    Nozzle Spay Time 0-99,9s(can be set)
    Spray Sequence Automatically switch by sequence
    Sample Support Platform φ400mm
    Sample Support Platform Speed 0-17r/min (Stepless speed regulation)
    Sample Support Platform Lift 300mm~400mm (Manually)
    Sample Support Platform Bearing ≤15kg
    Tank Volume 50L
    Test Water Recycling
    Flow Meter Can be disassembled
    Power Supply For Test Sample Provide interface for test product, 4 core wire power supply, the maximum 30A
    Material The frame material is the industrial shaped aluminum, and the inner shell material is SUS304 stainless steel plate
    Control Mode PLC controller + touch screen control, inverter adjust water pressure



    IEC 60529 IPX9 IP Code 9K Ingress Protection IEC Test Equipment for Auto Parts



    IEC 60529 IPX9 IP Code 9K Ingress Protection IEC Test Equipment for Auto Parts



    IEC 60529 IPX9 IP Code 9K Ingress Protection IEC Test Equipment for Auto Parts

    HongCe has a large range of test equipment for Degrees of protection provided by enclosures (IP Code), our waterproof degrees test equipment and system meet the requirements of all demostic and international standards:

    CEI IEC 60529 / GB 4208 Degrees of protection provided by enclosures (IP Code)
    CEI IEC 60068-2-11 / GB/T 2423.17 Basic environmental testing procedures – Part 2-11: Tests – Test Ka: Salt mist
    IEC 60068-2-1 / GB/T 2423.1 Environmental testing – Part 2-1: Tests – Test A: Cold
    CEI IEC 60068-2-2 / GB/T 2423.2 Environmental testing – Part 2-2: Tests – Test B: Dry heat
    IEC 60068-2-78 / GB/T 2423.3 Environmental testing – Part 2-78: Tests- Test Cab: Damp heat, steady state
    UL 1598 Luminaires

    UL 50 Enclosures for Electrical Equipment, Non-Environmental Considerations
