    Detailed Product Description
    Standard: IEC60884-1 Operation Interface: 7 Inch Color LCD Touch Screen
    Control System: PLC Workstation: 6
    Drive Mode: Servo Motor

    Household IEC60884-1 Clause 20 21 Switch Plug Socket Breaking Endurance Test System




    Products Introduction:

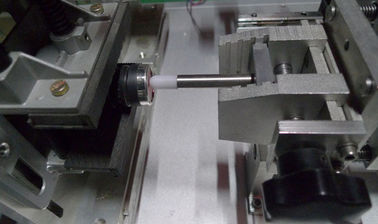

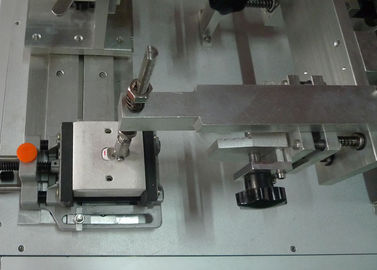

    The switch plug socket test system consists of one set of switch plug socket test equipment and 2 sets of load boxes. The test system can process breaking testing under load power and endurance testing under normal use for the switches plugs and sockets which are listed in IEC60884-1.

    The switch plug socket test equipment is designed and manufactured according to IEC60884-1, IEC61058-1, IEC60669-1standards and etc. It is applicable for household and similar fixed electrical installations’ breaking capacity and normal operation life test, also suitable for testing household and similar usage plug/ socket’s breaking capacity and normal operation life . The purpose is assessing whether the switch is able to withstand the normal use of mechanical damage and electrical fatigue damage, and whether the contact points has adhesion phenomenon, long-term closed or disconnected phenomena, to examine whether the test samples excessive worn and have other harmful consequences. It is special test equipment for switches and plug-sockets electrical endurance test.

    The load boxes are designed and manufactured according to IEC60884,IEC61058,IEC606691 standards and etc. It is applicable for household and similar fixed electrical installations switches and plug sockets breaking capacity and normal operation test, the rated voltage of the switch is not greater than 280V and the rated current less than 16A. The purpose is assessing whether the switch is able to withstand the normal use of mechanical damage and electrical fatigue damage, and whether the contacts has adhesion phenomenon,  long-term closed or disconnected phenomena, to examine whether the test samples excessive worn and have other harmful consequences.

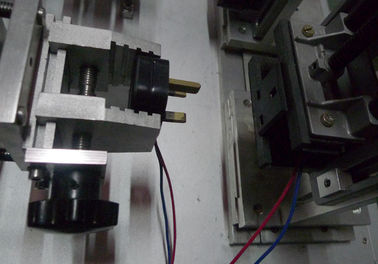

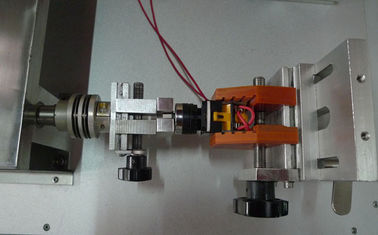

    The test system can do testing for button switches, toggle switches, rocker switches, push switches, rotary switches, plugs and sockets. Coupled with the load (resistive, inductive, capacitive) can process loading test,it has a corresponding control system.

    Technical Parameters:


    ModelSLT-3

    Power

    AC110V,60Hz or AC220V, 50Hz

    Work station

    6 work stations, three linear stations, three rotary station

    Operation interface

    7 inch color LCD touch screen

    Drive mode

    Servo motor

    Control system

    PLC

    Test times

    0~999999 times, can be preset

    Conduction time

    0~999.9s, can be preset

    Break time

    0~999.9s, can be preset

    Test  angle

    0-360°,  can be preset

    Numbers of test angles

    Angle 1~15 , can be preset

    Test stroke

    Linear: 0 ~ 100mm, adjustable
    Rotation: 1~359°, adjustable

    Test speed

    Linear: 10 ~ 200mm/s, adjustable
    Rotation: 0 ~ 360° /s, adjustable

    Test environment

    Atmospheric pressure 80 ~ 106kpa;
    Ambient temperature 5 ~ 40℃; Relative humidity (20 ~ 90)%RH;
    Use place: no violent shaking, no vibration, no electromagnetic interference,
    no dust, noexplosive or corrosive gas, good heat dissipation

    Dimensions

    L*W*H=1260mmx800mmx600mm

    Weight

    125KG




    Model

    HT-LDC

    Meter Power

    Single phase with ground AC220 ± 10% / 50Hz or AC110 ± 10% / 60Hz

    Load Power

    Three-phase four-wire AC380 ± 10% / 50Hz.
    (single-phase AC220 total three groups)

    Voltage V

    Range 0 ~ 300V accuracy ± 05% ± 2d

    Current A

    Range 0 ~ 40A accuracy ± 05% ± 2d

    Power KW

    Range 0~12KW,accuracy±05%

    Power Factor

    Range 03 to 0999 accuracy ± 05% ± 2d

    Load Selection

    Resistive, Inductive and Capacitive load three in one, switchable

    Capacitance Selection

    70uf,140uf,73uf optional

    Output Mode

    Each power,Interval power optional

    Count/Preset

    0~999999 times, can be preset

    Load power capacity

    3*10KVA

    Output current limit

    30A,the load will be automatically cut off when over 32A


    Output voltage limit

    300V,the load will be automatically cut off when over 305V


    Atmospheric pressure

    80~106kpa

    Ambient temperature

    5~40°C

    Relative humidity

    (20~90)%RH

    Use environment

    Requires no violent shaking, no vibration, no electromagnetic
     interference, no dust, no explosive, no corrosive gases, needs
    good heat dissipation place

    Dimensions and weight

    L*W*H=1200*760*1830mm,800kg
