Environmental Testing 2J Stainless Steel Vertical Impact Test Apparatusr IEC60068-2-75

Environmental Testing 2J Stainless Steel Vertical Impact Test Apparatusr IEC60068-2-75

    • Environmental Testing 2J Stainless Steel Vertical Impact Test Apparatusr IEC60068-2-75
    • Environmental Testing 2J Stainless Steel Vertical Impact Test Apparatusr IEC60068-2-75
    • Environmental Testing 2J Stainless Steel Vertical Impact Test Apparatusr IEC60068-2-75
    • Environmental Testing 2J Stainless Steel Vertical Impact Test Apparatusr IEC60068-2-75
    • Environmental Testing 2J Stainless Steel Vertical Impact Test Apparatusr IEC60068-2-75
    • Environmental Testing 2J Stainless Steel Vertical Impact Test Apparatusr IEC60068-2-75
  • Environmental Testing 2J Stainless Steel Vertical Impact Test Apparatusr IEC60068-2-75

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
    Model Number: VH-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiatable
    Packaging Details: Plywood
    Delivery Time: 25 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 15 set per month
    Contact Now
    Detailed Product Description
    Hammer Energy: 2J Hammer Material: Stainless Steel
    Impact Height: 0~1000mm Standard: IEC60068-2-75 Test Ehc
    High Light:

    impact test machine

    ,

    pendulum impact testing machine

    Environmental Testing 2J Stainless Steel Vertical Impact Test Apparatusr IEC60068-2-75





    Product information:



    The vertical impact hammer test apparatus is designed and manufactured according to the standard requirement of the IEC60068-2-75 Test Ehc.



    it is used to test the enclosure mechanical strength of the household and similar electrical appliances.





    Technical parameters:



    Model VH-1
    Impact height  0~1000mm
    Conduit size Φ35×300mm
    Way of releasing By manual
    Hammer energy 2J
    Hammer material Stainless steel
    Standard IEC60068-2-75 Test Ehc





    Test method:



    The hammer consists basically of a striking element which falls freely from rest through a vertical height (0~1000mm), selected from following table, on to the specimen surface held in a horizontal plane. The fall of the striking element (2J) shall be along a guideway, for example a tube, with negligible braking. This guideway shall not rest on the specimen and the striking element shall be free of the guideway on striking the specimen.



    Table-Height of fall:



    Energy

       J

    0.2

    0.35

    0.5

    0.7

    1

    2

    5

    10

    20

    50

    Equivalent

       Mass

        kg

    0.25

    0.25

    0.25

    0.25

    0.25

    0.5

    1.7

    5

    5

    10

    Height of fall

    mm±1%

    80

    140

    200

    280

    400

    400

    300

    200

    400

    500



    The height of fall shall be as giver in above table, the equivalent mass stated therein being equal to the actual mass of the striking element.



    Operation steps:

    A proper hammer is chose according to the related standard requirement. Place the sample on the bottom of the conduit and adjust the height of the conduit the height is measured by the ruler) Next, put the hammer on the top of the conduit and press the release button. Thus the impact hammer falls down and hit the sample.

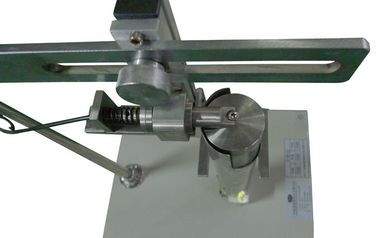

    Environmental Testing 2J Stainless Steel Vertical Impact Test Apparatusr IEC60068-2-75 0



    Customized version (above)

    VS

    Standard version (below)



    Environmental Testing 2J Stainless Steel Vertical Impact Test Apparatusr IEC60068-2-75 1
