PLC Power Cord Flexibility Performance Tester IEC 60335 Test Equipment

PLC Power Cord Flexibility Performance Tester IEC 60335 Test Equipment

  • PLC Power Cord Flexibility Performance Tester  IEC 60335 Test Equipment
  • PLC Power Cord Flexibility Performance Tester  IEC 60335 Test Equipment
  • PLC Power Cord Flexibility Performance Tester  IEC 60335 Test Equipment
  • PLC Power Cord Flexibility Performance Tester  IEC 60335 Test Equipment
PLC Power Cord Flexibility Performance Tester  IEC 60335 Test Equipment
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS
Model Number: PCF-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
Electrical Control: PLC Drive Mode: Electrical
Test Sample: Small Household Appliances Test Cycles: 0-999999, Can Be Preset
Standard: IEC60335-1 Clause 23.3 And 25.14
High Light:

iec tester

,

laboratory test equipment

PLC Power Cord Flexibility Performance Tester IEC 60335 Test Equipment



Standard:



This power cord flexibility performance tester conforms to Clause 23.3 and 25.14 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements, IEC60335-2-14 and etc.



Application:



It is used to check that the supply cord of the small household appliances (such as Coffee pot / electric iron) and lamps is adequately protected against excessive flexing where it enters the appliance.



Test sample:



Small household appliances, such as coffee pot, electric iron, toaster, luminaires and etc.



Features:

  1. The test stations, test angles, load voltage can be customized.
  2. The test cycles, speed, voltage and etc. can be preset.
  3.  PLC electrical control, 7" color touch screen intelligent operation system
  4. three work stations synchronously controlled
  5. beautiful appearance, highly reliable functions and wide range of application

​Technical parameters:



Input Power AC220V 50HZ
Control Method PLC control, touch screen operation
Station 3 (can upgrade to 6 stations),synchronous
Drive Mode Electrical
Flexing Angle 0-360°, preset on the touch screen
Flexing Speed 0-60cycles/min, can be preset
Test Cycles 0-999999, can be preset
Loading Weight 5N,10N
Loading Voltage 0-250V, can be regulated
Sample judgment Judge the conduction by current



Detailed Picture:

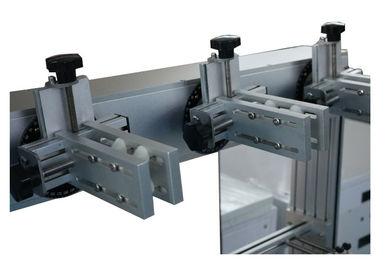

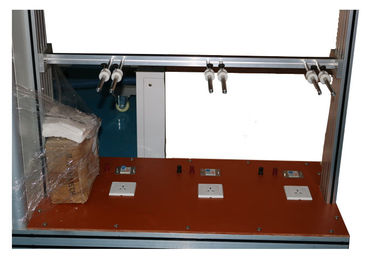

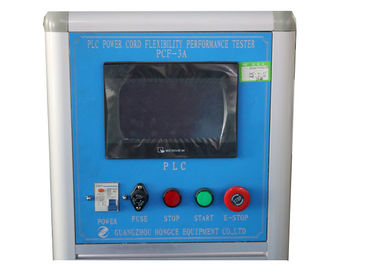

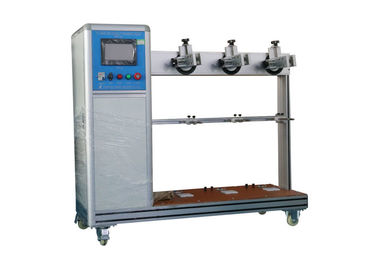

PLC Power Cord Flexibility Performance Tester  IEC 60335 Test Equipment 0
