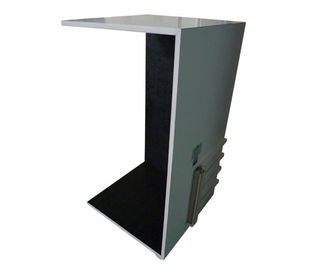

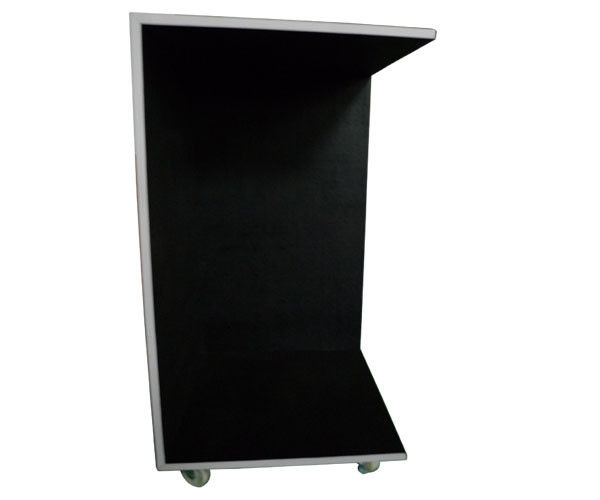

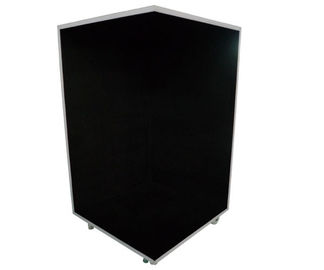

Temperature Measurement Corner For Electrical Products 32 Points

Temperature Measurement Corner For Electrical Products 32 Points

  • Temperature Measurement Corner For Electrical Products 32 Points
  • Temperature Measurement Corner For Electrical Products 32 Points
  • Temperature Measurement Corner For Electrical Products 32 Points
  • Temperature Measurement Corner For Electrical Products 32 Points
Temperature Measurement Corner For Electrical Products 32 Points
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: CS-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
Temperature Measurement Points: 32 Dimention: 600X600X1000mm
Standard: IEC60335-1:2004 Chapter 11
High Light:

electrical appliance tester

,

portable appliance testing equipment

Temperature Measurement Corner For Electrical Products 32 Points 600X600X1000mm





Product information:

The temperature measurement corner conforms to the standard requirement of IEC60335-1:2004 chapter 11. It is designed and manufactured to provide the required environment for the temperature rising test of all kinds of electrical, electrical products. It can be customized according to the different testing samples.



Technical parameters:

Standard IEC60335-1:2004 chapter 11
Size 600X600X1000mm (800X800X1000mm,1000x1000x1200mm can be customized)
Thermocouple  the diameter of the thermocouple is less than 0.3mm. There are three kinds of the thermocouple: K, T, J (any one of it can be chosen)
The thermocouple arrangement All leads on a connection line(optionally equipped with thermocouple plug and socket)
The sheet copper used for temperature measurement the diameter of 15mm and the thickness of 1mm
The number of temperature measuring points 32,(20,48,64 can be customized)
The arrangement of temperature measuring points 100*100mm or 76*76mm square(it can be customized)
Plywood frame The thickness is 20mm and the front side is painted with Berlin black and the reverse side is with gray film back
The movable part there are 4 removable wheels installed on the bottom of the device
The height of the wheel is about 100mm. The top plate is equipped with hook whose load bearing is 15Kg.
Temperature patrol system needs to be equipped additionally (optionally equipped with 48 road tour temperature table)







Temperature Measurement Corner For Electrical Products 32 Points 0
