60Hz Plug Cord Cable Testing Equipment Flexing Rate 10~60 Times / Min
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS
Model Number: FL-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
Standard: IEC60884-1 Figure 21 Flexing Angle: 45° , 60°, Or 90°(or 180°)
Workstations: 6 Flexing Rate: 10~60 Times/min
High Light:

material testing equipment

,

power cable tester

Plug Cord Cable Flexing Swivel Testing Machine With Load 6 Workstations IEC60884-1





Product Introduction:



HongTong FL-1 Plug Cord Flexibility Tester is designed and manufactured according to the standard requirement of IEC 60884-1 figure 21,  which can process 10,000 flexing at a rate of 60 flexing per minute.

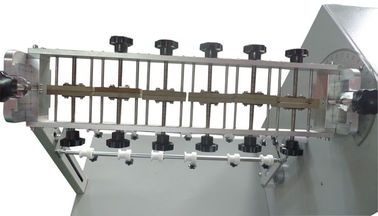

The test equipment has 6 workstations, thus six cables or cords fitted with plugs can be tested simultaneously.



Test Application:

The cables are connected to a socket and the tail of the cable is connected to the tester to detect if an internal fault occurs with the cable wiring or accessory connection. The instrument starts in a vertical orientation and then flexes the specimens 45° on either side of the vertical for a total 90° of flexing. A standard rate of 60 flexing per minute is used but a slower rate can be selected if desired.
A set of customer selected weights are included with the instrument so that the proper force can be applied to the cable during the test.



Test method:

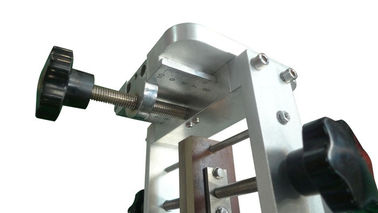

Set up the testing sample on the swing fixture and conduct the circuit. In the other side, the according weight is used, then set the flexing angle and testing times as well as the required speed. Then start the equipment. When the sample is broken off, the corresponding counter stops working and the indicator light off. At that time, the counter displayed is the testing times of the samples. When the total testing times are reached, the equipment will stop working.

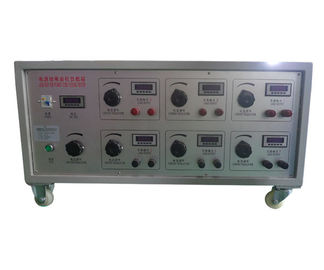

This testing machine can be connected with Load of power line tester for the load test.



Main Technical Parameters:

 Power Supply

220V 50Hz or 115V 60Hz

Number of Flex Per Test

1-999999 (selectable)

Number of Test Station

6, with 6 sets of clamp device

Rate of Flexing

10~60 times/min(selectable) individual counts for each station

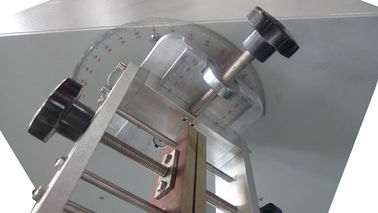

Flexing Angle

Swivel angle on either side for 45° , 60°, or 90°(or 180°)(selectable)

Weight

10N/20N*6(the weight of UL113g and 284g can be customized)

Dimensions

W*L*H=500mm *1000mm* 1100mm

Conforms to standard

IEC884-1 Figure 21 and clause 23.4,IEC320-1,VDE0620

Mechanical theory

The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action.
