100mm Drop Test Device With Hardness 40I - 50I RHD Galvanized Steel Hammer

    • 100mm Drop Test Device With Hardness 40I - 50I RHD Galvanized Steel Hammer
    • 100mm Drop Test Device With Hardness 40I - 50I RHD Galvanized Steel Hammer
    • 100mm Drop Test Device With Hardness 40I - 50I RHD Galvanized Steel Hammer
    • 100mm Drop Test Device With Hardness 40I - 50I RHD Galvanized Steel Hammer
    • 100mm Drop Test Device With Hardness 40I - 50I RHD Galvanized Steel Hammer
    • 100mm Drop Test Device With Hardness 40I - 50I RHD Galvanized Steel Hammer
  • 100mm Drop Test Device With Hardness 40I - 50I RHD Galvanized Steel Hammer

    Product Details:

    Place of Origin: China
    Brand Name: HongTong
    Certification: CNAS(cost additional)
    Model Number: HT-21673

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Plywood
    Delivery Time: 5 work days
    Payment Terms: T/T
    Supply Ability: 99 set/month
    Contact Now
    Detailed Product Description
    Hammer Hardness: 40I -50IRHD Hammer Diameter: 70mm
    Impact Height: 100mm Standard: IEC 60335-2-4 (par. 21.101) And IEC 60335-2-7 (par. 21.101.1)

    IEC 60335-2-4 100mm Drop Test Device



    Products Introduction:



    The drop test device is specially designed and manufactured according to IEC 60335-2-4 (par. 21.101) and IEC

    60335-2-7 (par. 21.101.1).

    It is used for detect the impact-resistance mechanical strength properties of the appliances covers by loading loads from the top.

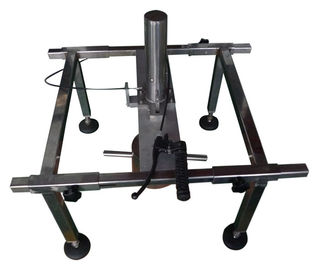

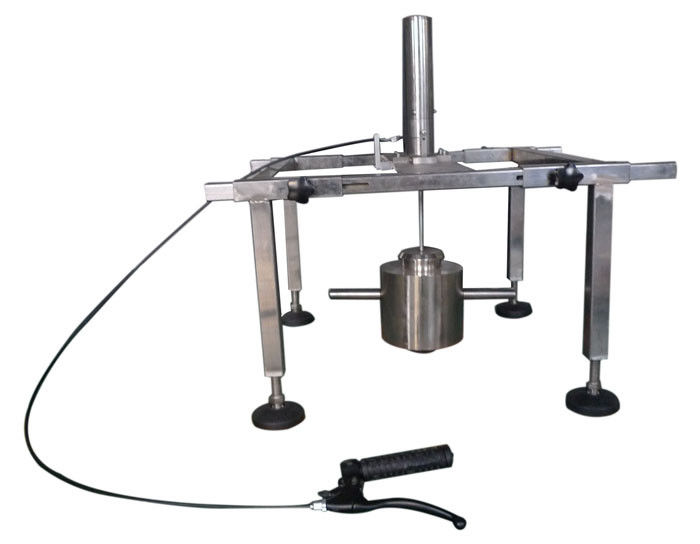

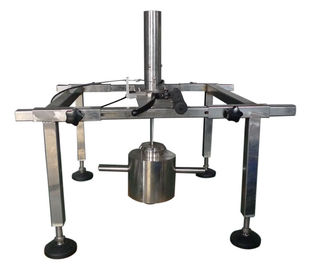

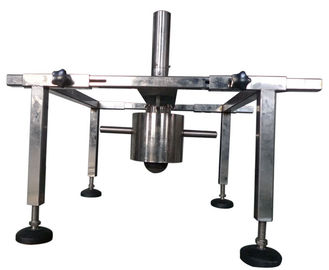

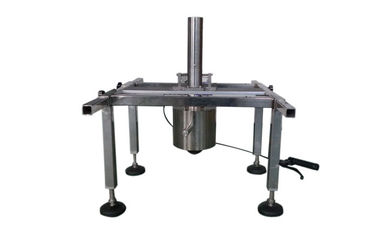

    Structure Description:

    A. The device has a self-locking hammer mechanism. The hammer is made of C40 galvanized steel (diameter 150mm, total mass 20KG), and it is with a diameter 70mm hardness IRHD 40-50 rubber hemisphere. The hammer can be released by the handle.

    B. The device has stainless steel frame, 200mm-800mm width is adjustable, t is applicable for different specifications test samples.

    C. The device is easy to operate, simple and practical.



    Technical Parameters:



    Parameters Name

    Parameter Data

    Hammer

    Rubber hammer hemisphere, hardness 40I RHD-50I RHD; hammer handle is made of

    stainless steel; weight: 20kg

    Impact height

    100mm, can be adjusted by adjustable feet

    Locking mode

    Self-locking by enhancing the hammer

    Release mode

    Manually release

    Sample’s dimension

    W * D = (200 ~ 800) * 480mm



    100mm Drop Test Device With Hardness 40I - 50I RHD Galvanized Steel Hammer
