IEC60884-1 Plug Socket Tester Temperature Rising Tester Testing Voltage Less Than 12V

IEC60884-1 Plug Socket Tester Temperature Rising Tester 0-125A Testing Current

For this test, the temperature rise is measured on the terminals.
The plug shall be tested in a draught-free environment at the centre of a plane wooden sheet which shall be at least 20 mm thick, 500 mm wide and 500 mm high.
Plugs are tested as follows.
Clamping units having the dimensions specified in Figure 44 are fitted on each live pin and earthing pin, if any, of the plug together with the thermocouple. The screw is then placed approximately in the middle of the bare part of the pin and tightened with a torque of 0,8 Nm.
An alternating current as specified in Table 20 is then passed for 1 h.
Plugs having lateral earthing contacts and resilient earthing contacts are tested using a fixed socket-outlet complying with this standard and having as near to-average characteristics as can be selected, but with minimum size of the earthing pin, if any.
The plug is inserted into the socket-outlet, and an alternating current as specified in Table 20 is passed for 1 h.
NOTE 4 Adequate measures should be taken to avoid electric shocks during the test.
For accessories having three poles or more, the current during the test shall be passed through the phase contacts, where applicable. In addition, separate tests shall be made passing the current through the neutral contact, if any, and the adjacent phase contact and through the earthing contact, if any, and the nearest phase contact. For the purpose of this test, earthing contacts, irrespective of their number, are considered as one pole.
In the case of multiple socket-outlets, the test is carried out on one socket-outlet of each type and current rating.
The temperature is determined by means of thermocouples.
The temperature rises indicated by the thermocouples shall not exceed 45 K.

Standard: IEC 60884-1 2013 clause 19, IEC 60998.1, VDE0620

Application: This device is use for test the temperature rise under normal operation of electrical appliances.

Test sample: Household plugs and sockets                   Plug Socket Tester

Feature: External type, thermocouple wire directly connected to the sample.

PLC control and touch screen operation, record the temperature of 6 points and display it on the touch screen. If the temperature reaches the set value, it will stop automatically. Historical data can be stored for 15 days and can be read through USB.                    Plug Socket Tester

Parameters:

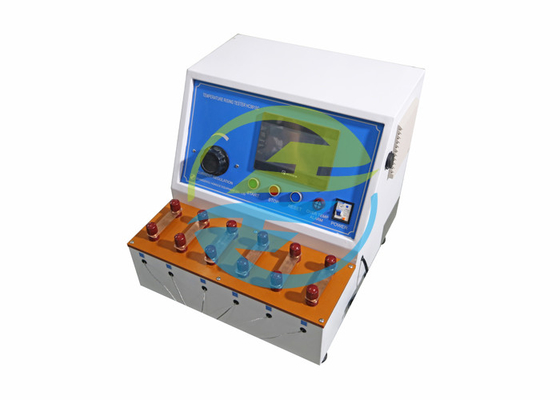

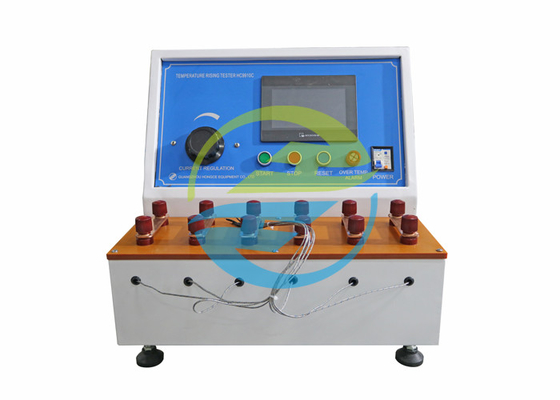

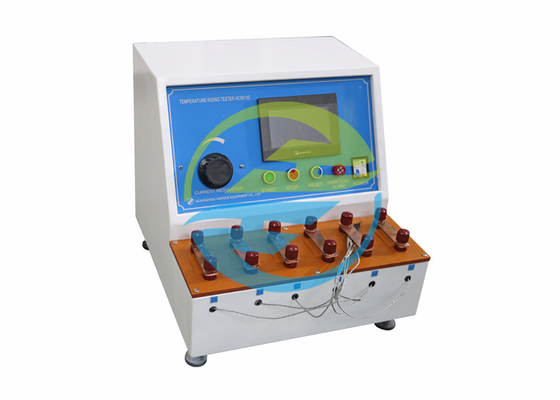

Picture for reference:
