IEC60884-1 Clause 24.19 Figure 38 Heat Resistance Compression Testing Machine

IEC60884-1 Clause 24.19 Figure 38 Heat Resistance Compression Testing Machine

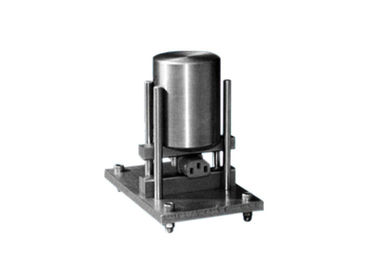

IEC60884-1 Clause 24.19 Figure 38 Heat Resistance Compression Testing Machine IEC60884-1 Clause 24.19 Figure 38 Heat Resistance Compression Testing Machine IEC60884-1 Clause 24.19 Figure 38 Heat Resistance Compression Testing Machine

Large Image :  IEC60884-1 Clause 24.19 Figure 38 Heat Resistance Compression Testing Machine

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: RH-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 15 set per month
Detailed Product Description
Weight: 200N Material: 304 Stainless Steel
Cylindrical Face: 25 Mm Radius Standard: IEC60884-1 Figure 38
High Light:

compressive strength machine

,

compression test equipment

Heat Resistance Compression Lab Test Equipment With IEC60884-1 Figure 38





Product details:

This apparatus confirms to the standard requirement of IEC60884-1 figure 38. It is used to test the pressure-resistant properties of the electrical accessories and mounting box under the circumstance of being heated. This testing equipment should be put into use with the heating box.



This device comprises two steel jaws, having a cylindrical face of 25 mm radius, a width of 15 mm and a length of 50 mm. The length of 50 mm can be increased, depending on the size of the accessory to be tested. The corners are rounded with a radius of 2.5 mm. The specimen is clamped between the jaws in such a way that these press against it in the area where it is gripped in normal use, the centre line of the jaws coinciding as nearly as possible with the centre of this area. The force applied through the jaws is 20 N. The test occurs in a heating cabinet at a temperature of (80±2) °C.



1. Weight: 20N (including the moving pressing plates)

2. Pressing plate size: length: 50mm, width: 15mm, cylindrical face: radius is 25mm, the corners are rounded with a radius of 2.5 mm.

3. The inside of the guides distance: 50mm×15.4mm

4. Material:304 stainless steel



Test method:

1. Before first use, user should familiar with the relevant standards for more effective and proper using the test apparatus and completing the test.

2. According to the standard requirements for sample pretreatment before use.

3. The pressing plate (small) is placed between the guides (narrow side), cylindrical face is upward, the specimen is placed horizontally on the pressing plate, then place the pressing plate (big) on the specimen and the cylindrical face is downward, finally put the weight on the pressing plate (big), test time is 1 hour.



Attention:

The specimen is clamped between the pressing plates in such a way that these press against it in this area where it is gripped in normal use, the centre line of the plates coinciding as nearly as possible with the centre of this area.

IEC60884-1 Clause 24.19 Figure 38 Heat Resistance Compression Testing Machine 0
