IEC60065 Figure 11 European / UL Plug Socket Tester

IEC60065 Figure 11 European / UL Plug Socket Tester

  • IEC60065 Figure 11 European / UL Plug Socket Tester
  • IEC60065 Figure 11 European / UL Plug Socket Tester
  • IEC60065 Figure 11 European / UL Plug Socket Tester
  • IEC60065 Figure 11 European / UL Plug Socket Tester
  • IEC60065 Figure 11 European / UL Plug Socket Tester
IEC60065 Figure 11 European / UL Plug Socket Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: SOB-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
Weight: 2.5N*1, 1N*1 Plug: UL Plug*1, European Plug*1,all-purpose Plug*1
Conforms To Standard: IEC60884,VDE0620,IEC60598,IEC60065Fig11 Arm Of Force: 0-200mm
High Light:

electric socket tester

,

socket tester

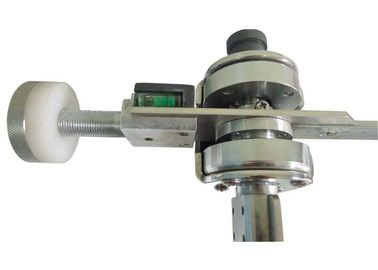

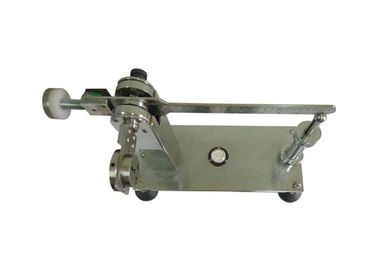

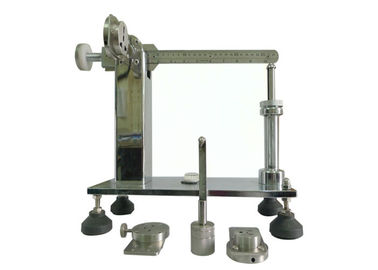

IEC60065 Figure 11 Socket-outlet Torque Balance





Product information:

The HT plug torque tester conforms to the standard of IEC60065 figure 11. It is used for checking whether the mechanical stress which occurs when the Direct Plug-in Equipment with plug pin normally insert into the socket is in the required range.

A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.

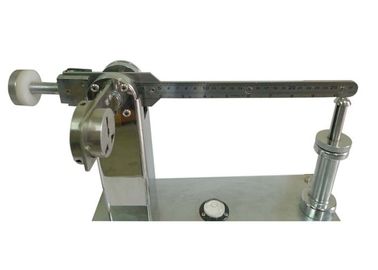

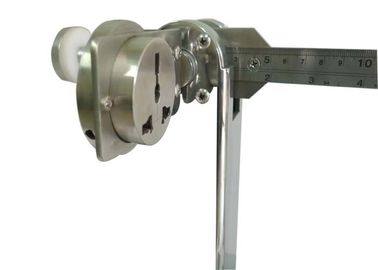

The balancing arm of the test apparatus pivots about a horizontal axis through the centre lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket-outlet.
With the device not in engagement, the balancing arm is in equilibrium, the engagement face of the socket-outlet being in the vertical position.
After the device has been engaged, the torque to be applied to the socket-outlet to maintain its engagement face in the vertical plane is determined by the position of a weight on the balancing arm. The torque shall not exceed 0.25 Nm.



Technical parameters:

weight

2.5N*1, 1N*1

Plug

UL plug*1, European plug*1,all-purpose plug*1

Conforms to standard

IEC60884,VDE0620,IEC60598,IEC60065Fig11

Arm of force

0-200mm

The distance from the contact surface and the Axis of the surface

8mm

IEC60065 Figure 11 European / UL Plug Socket Tester 0
