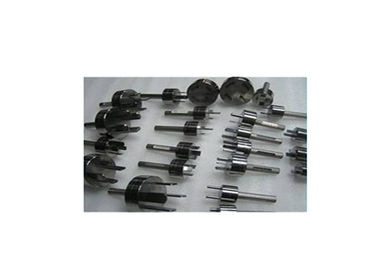

Universal Plug Socket Tester Measuring Gauge GB1002-2008 / GB1003-2008

Universal Plug Socket Tester Measuring Gauge GB1002-2008 / GB1003-2008

  • Universal Plug Socket Tester Measuring Gauge GB1002-2008 / GB1003-2008
  • Universal Plug Socket Tester Measuring Gauge GB1002-2008 / GB1003-2008
Universal Plug Socket Tester Measuring Gauge GB1002-2008 / GB1003-2008
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third party calibration certificate(cost additional)
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable

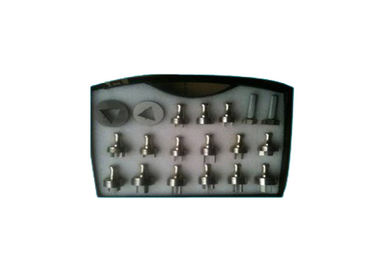

Packaging Details: Aluminum Box
Delivery Time: 7 Days
Payment Terms: T/T
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
High Light:

electric socket tester

,

socket tester

Measuring Gauge For Plug and Socket





Product information:

Some measuring gauges are designed and manufactured by Hongtong Electromechanical Co., Ltd. These measuring gauge confirm to the standard of GB2099.1-2008 clause9,GB1002-2008 and GB1003-2008 which are used for the dimensional measurement and verification of the plug socket for household and similar use. They are the necessary testing devices used in the laboratory and measurement test department. The specific measuring gauges are included as follows:



GB1002-2008 measuring gauge:

No.

Name

Standard figure

quantity

remarks

1

Measuring gauge for single phrase two-pole socket

Figure 6

1

6A and 10A are used universally

2

Measuring gauge for single phrase two-pole socket with ground pin

Figure 7(10A)

1

6A and 10A are used universally

3

The internal Measuring gauge for single phrase two-pole socket with ground pin

Figure 7(16A)

1



4

The external Measuring gauge for single phrase two-pole socket with ground pin

Figure 8(10A)

1



5

The external Measuring gauge for single phrase two-pole socket with ground pin

Figure 8(16A)

1



6

The single-phase two pole socket maximum gauge

Figure 9(10A)

1



7

The single-phase two pole socket minimal gauge

Figure 10(10A)

1



8

Single-phase two-pole socket check gauge

Figure 11(10A)

1



9

The single-phase two pole socket measuring gauge without contact

Figure 12(10A)

1



10

The single phrase two-pole socket with ground pin maximum gauge

Figure 13(10A)

1



11

The single phrase two-pole socket with ground pin maximum gauge

Figure 13(16A)

1



12

The single phrase two-pole socket with ground pin minimal gauge

Figure 14(10A)

1



13

The single phrase two-pole socket with ground pin minimal gauge

Figure 14(16A)

1



14

The single phrase two-pole socket with ground pin check gauge

Figure 15(10A)

1



15

The single phrase two-pole socket with ground pin check gauge

Figure 15(16A)

1



16

The single phrase two-pole socket with ground pin measuring gauge without contact

Figure 16(10A)

1



17

The single phrase two-pole socket with ground pin measuring gauge without contact

Figure 16(16A)

1



18

The general gauge for the round plug part of the Single-phase two-pole double socket

Figure 17(10A)

1



19

The check gauge for the round plug part of the Single-phase two-pole double socket

Figure 18(10A)

1



20

handle



19





GB1003-2008 measuring gauge

1

The internal measuring gauge for three-phase plug

Figure 3(16A)

1



2

The internal measuring gauge for three-phase plug

Figure 3(25A)

1



3

The internal measuring gauge for three-phase plug

Figure 3(32A)

1



4

The external measuring gauge for three-phase plug

Figure 4(16A)

1



5

The external measuring gauge for three-phase plug

Figure 4(25A)

1



6

The external measuring gauge for three-phase plug

Figure 4(32A)

1



7

The maximal gauge for three-phase plug

Figure 5(16A)

1



8

The maximal gauge for three-phase plug

Figure 5(25A)

1



9

The maximal gauge for three-phase plug

Figure 5(32A)

1



10

The maximal gauge for three-phase plug

Figure 6(16A)

1



11

The minimal gauge for three-phase plug

Figure 6(25A)

1



12

The minimal gauge for three-phase plug

Figure 6(32A)

1



13

three-phase plug check gauge

Figure 7(16A)

1



14

three-phase plug check gauge

Figure 7(25A)

1



15

three-phase plug check gauge

Figure 7(32A)

1



16

handle



15







About us:



HongTong Electromechanical Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
