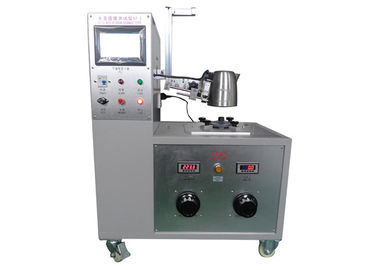

Touch Screen Endurance Kettle Plug Tester Electrical Appliance Tester

Touch Screen Endurance Kettle Plug Tester Electrical Appliance Tester

  • Touch Screen Endurance Kettle Plug Tester Electrical Appliance Tester
  • Touch Screen Endurance Kettle Plug Tester Electrical Appliance Tester
  • Touch Screen Endurance Kettle Plug Tester Electrical Appliance Tester
Touch Screen Endurance Kettle Plug Tester Electrical Appliance Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: KP-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
High Light:

electrical appliance tester

,

portable appliance testing equipment

Kettle Plug Tester With Touch Screen PLC Electric Control System




Product information:


The kettle insert-withdraw endurance test device is designed and manufactured according to the standard IEC60335 -2- 15 clause 22.103, which is used to test the cordless kettle plug life. The test times can be preset (up to 999,999 times), automatically record the number of tests and breakover times, it will automatic alarm when reach to the preset number of times or breakdown.



Product feature:


1, This device is through PLC electric control system, adopt stepper motor drive lead screw positive and negative rotation to realize the reciprocating action of the manipulator.
2, The whole operations are touch screen, the parameters can be preset on the touch screen before testing, include the test times for the kettle insert-withdraw, conduction time, power-off time, test stroke, test speed etc.. Touch screen also equip with functions of manual adjustment and real-time location display, can be more accurate and effective to adjust the sample and the device degree of adaptability.

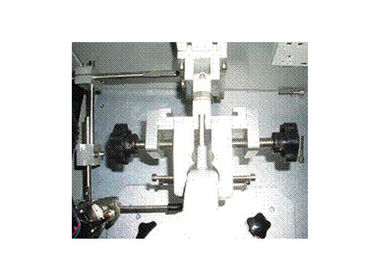

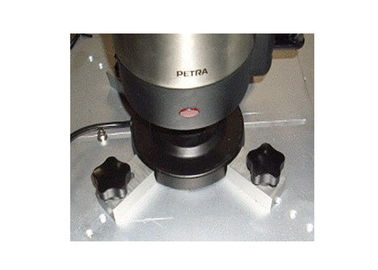

3, Multi-function fixture, it is suitable for different kettle test with adjustable height;
4, It can automatic switchover between load test and non-loaded test, it can also be tested independently, device equipped with load inside, the load test can be done when specimen is inserted into the device interface;
5, It can effectively complement the switch-off action on load test with complementary unit;
6, Using floor type structure, with casters can move freely, a rigid frame, good stable performance, seal plate treated by painting, sandblasted aluminum fixtures, beautiful and practical.





Model specifications and technical parameters:



S/N

Item

Main manipulator

Complementary unit

1

Operation way

PLC+ touch screen

PLC+ touch screen

2

Displacement

0-100mm can be preset

0-25mm can be preset

3

Speed

0-100mm/s can be preset

0-20mm/s can be preset

5

Test times

0~999999 can be preset

0~999999 can be preset

6

time

0-999.9s can be preset

0-999.9s can be preset

7

Fixture

Main manipulator fixture

Complementary unit fixture

8

Load current and voltage

0-250V,0-15A adjustable

9

Load test and non-load test

Automatic shift

10

Test station

Single station

11

Power supply

220V  50Hz

12

Dimension and weight

83*50*104cm,150kg






About us :



HongTong Electromechanical Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
