|Place of Origin:||China|
|Certification:||Third part calibration certificate(cost additional)|
|Minimum Order Quantity:||1 set|
|Delivery Time:||25 days|
|Supply Ability:||15 set per month|
|Power:||Electronic||Usage:||Electrical Appliance Tester|
|Product Name:||Household Appliance Supply Cord Flexing Test Apparatus||Warranty:||1 Year|
|Power Supply:||220V 50Hz||Standard:||IEC60335-1|
|Loading Weight:||5N,10N||Test Cycles:||0-999999, Can Be Preset|
electrical appliance tester,
portable appliance testing equipment

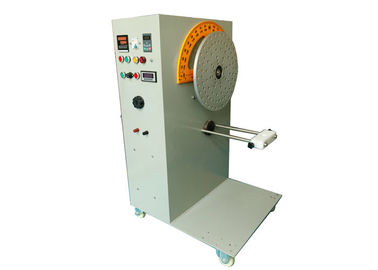

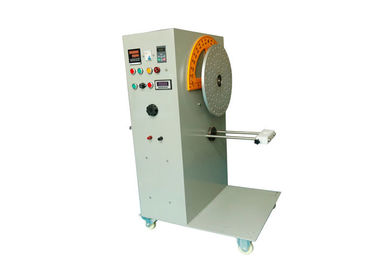

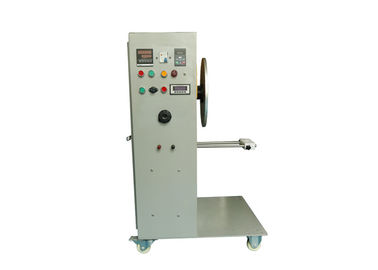

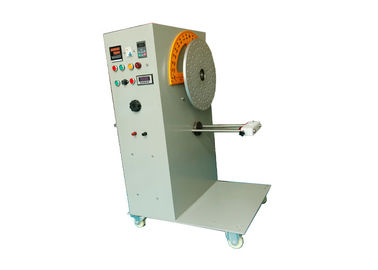

IEC60335-1 Electrical Appliance Tester Household Appliance Supply Cord Flexing Test Apparatus
This test apparatus checks the protection of the supply cord where it enters the appliance. It conforms to the standard requirement of IEC60335-1 clause 25.14. Appliances provided with a supply cord that are moved while in operation shall be constructed so that the supply cord is adequately protected against excessive flexing where it enters the appliance. This does not apply for appliances with automatic cord reels.
The appliance includes the inlet opening is fixed to the oscillating member so that, when the supply cord is at the middle of its travel, the axis of the cord where it enters the cord guard or inlet is vertical and passes through the axis of oscillation. The major axis of the section of flat cords shall be parallel to the axis of oscillation.
The cord is loaded so that the force applied is
– 10 N, for cords having a nominal cross-sectional area exceeding 0,75 mm2;
– 5 N, for other cords.
The distance X, as shown in figure 8, between the axis of oscillation and the point where the cord or cord guard enters the appliance, is adjusted so that when the oscillating member moves over its full range, the cord and load make the minimum lateral movement.
The oscillating member is moved through an angle of 90° (45° on either side of the vertical), the number of flexings for type Z attachments being 20 000 and for other attachments 10 000. The rate of flexing is 60 per minute. Electrical Appliance Tester
NOTE: A flexing is one movement of 90°.
The cord and its associated parts are turned through an angle of 90° after half the number of flexings, unless a flat cord is fitted.
During the test, the conductors are supplied at rated voltage and loaded with the rated current of the appliance.
1, Power Supply:AC220V 50HZ；
2, Angle of bending:45°,60°,90°or 120°,180°adjustable；
3, Bending rate:8～60rpm(frequency control)；
4, Test Station: 1. 3 working stations and 6 working stations can be customized.
5, Maximum output voltage:240V；
6, Maximum output power:3KW；
7, Maximum current output:12A；
8, Maximum load bearing of samples:30kg；
9, The load weight:5N,10N*1；
10, Counter:0~999999 6 digit display,preset；
11, It is equipped with sample clamp or it is customized according to the sample.
|Parameters / Model||HJ0608||HJ0608A||HJ0608B|
|Input Power||AC220V 50HZ||AC220V 50HZ||AC220V 50HZ|
|Control Method||Electrical control, buttons operation||PLC control, touch screen operation||PLC control, touch screen operation|
|Station||One||One||3 (can upgrade to 6 stations),synchronous|
|Flexing Angle||Unilateral 45°,60°,90°, mechanical adjustable||0-360°, preset on the touch screen||0-360°, preset on the touch screen|
|Flexing Speed||0-60cycles/min, frequency control||0-60cycles/min, can be preset||0-60cycles/min, can be preset|
|Test Cycles||0-999999, can be preset||0-999999, can be preset||0-999999, can be preset|
|Loading Voltage||0-250V, can be regulated||0-250V, can be regulated||-|
|Sample judgment||Judge the conduction by current||Judge the conduction by current||Judge the conduction by current|
